ICON-K53067T

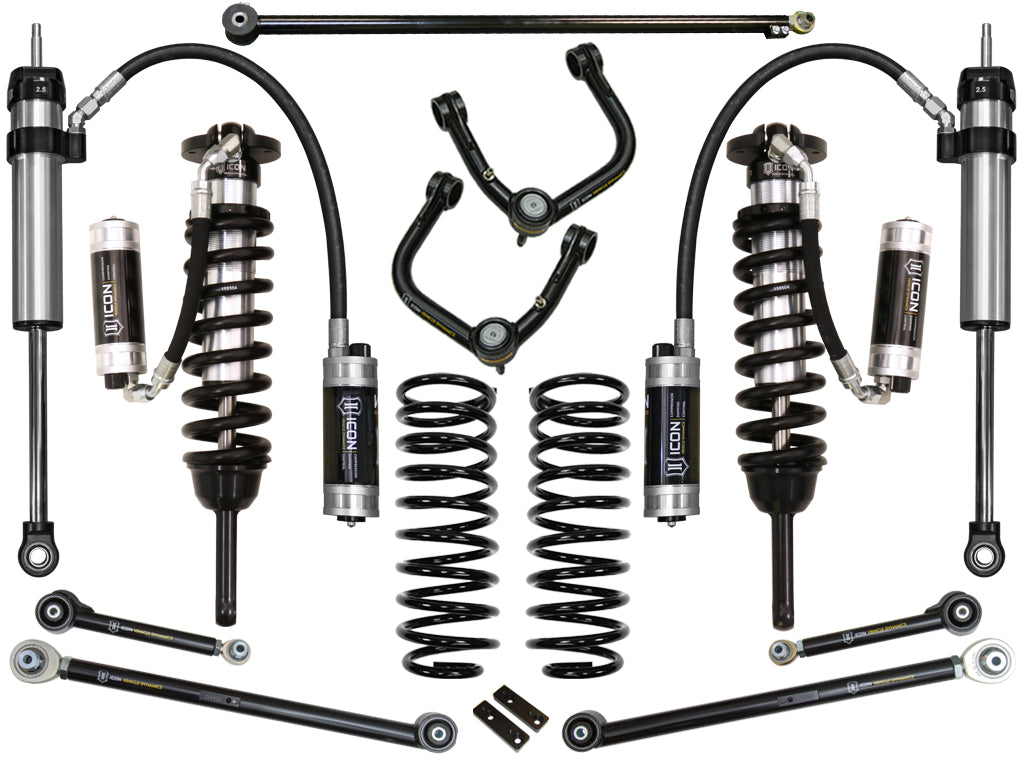

0-3.5in Stage 7 Suspension System <br> 10-24 Toyota 4Runner 10-14 FJ Cruiser
ICON VEHICLE DYNAMICS
®

0-3.5in Stage 7 Suspension System
10-24 Toyota 4Runner 10-14 FJ Cruiser

SKU: ICON-K53067T
NEW
$6,058.65

Availability: In Stock

Compatibility
Specification
Product Description Reviews
Description:

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers¡¯ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 7 system includes vehicle-specific tuned, extended travel 2.5¡± coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle ¡°feel¡± through the range of travel. These coilovers are also height adjustable for 0-3.5¡± of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON's tubular steel upper and lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2¡± of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDCV remote reservoir rear shocks¡¯ larger diameter offers outstanding performance off-road and a smooth ride on the street with adjustable compression damping.

Features:

  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • 6061 aircraft grade aluminum CNC machined components
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Adjustable rear track bar proper rear axle placement under vehicle
  • Bolt-on system means no cutting or welding necessary for install
  • CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
  • FK Rod End bearings for extended longevity and minimal deflection
  • Increased wheel travel and ride quality over stock
  • Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
  • Tubular upper control arms for added strength, durability, and improved alignment geometry
  • Vehicle specific tuned front and rear shocks for superior shock damping and control


  • Package Includes:

  • Suspension Lift Kit


  • Compatible With:

  • 2010-2024 Toyota 4Runner
  • 2010-2014 Toyota FJ Cruiser




  • WARNING: This product contains chemicals known to the State. For more information go to https://www.p65warnings.ca.gov/
