Description:

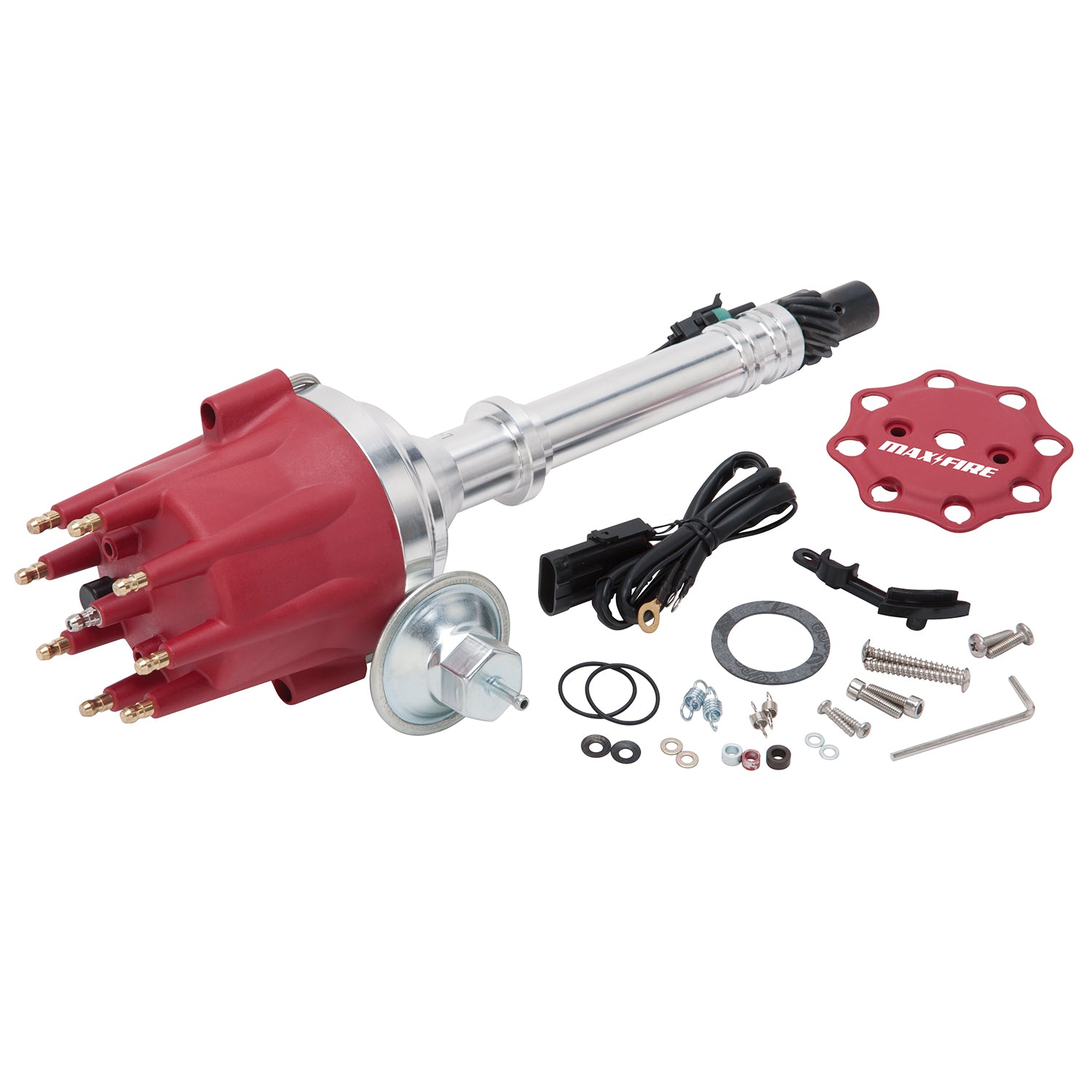

Edelbrock part 22750 Max-Fire distributor for Chevy V-8 engines (except Tall deck blocks and 348/409) is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential
Features:
Advance Type: Vacuum and Mechanical
Cap Color: RED
Coil Wire Included: Yes
Color: Red
Distributor Cap Included: Yes
Gear Material: HARDENED IRON
Grade Type: Performance
Ignition Box Required: No
Ignition Coil Included: No
Ignition Rotor Included: Yes
Marine Approved: No
Rotor Rotation: Clockwise
Trigger Type: Magnetic
Package Includes:
Distributor E-ST EFI II Pontiac 326-455
Compatible With:
1973-1974,1976-1983,1987-1991 Avanti II
1983-1989 Excalibur Phaeton
1977-1981 Buick Century
1978,1982 Buick LeSabre
1977-1980,1982-1987 Buick Regal
1991-1993 Buick Roadmaster Commercial Chassis
1977-1979 Buick Skylark
1970-1975 Chevrolet Bel Air
1975-1986 Chevrolet K5 Blazer C10 C20 C30 G30 K10 K20 G10 G20
1973-1986 Chevrolet C10 Suburban C20 Suburban K20 Suburban K10 Suburban
1972-1986 Chevrolet Camaro El Camino
1970-1986 Chevrolet Caprice Monte Carlo
1972,1974-1982,1984-1986 Chevrolet Corvette
1970-1985 Chevrolet Impala
1977-1986 Chevrolet K30
1972-1979 Chevrolet Nova
1975-1978 GMC C25 C25 Suburban C35 G15 G25 K15 K15 Suburban K25 K25 Suburban C15 C15 Suburban G35
1979-1986 GMC C2500 C2500 Suburban C3500 G1500 G2500 K1500 K1500 Suburban K2500 K2500 Suburban K3500 C1500 C1500 Suburban
1978-1986 GMC Caballero
1977-1978 GMC K35
1980,1982 Oldsmobile Cutlass Cruiser
1978-1981 Oldsmobile Cutlass
1978-1980 Oldsmobile Cutlass Supreme Cutlass Salon
1975,1977,1981-1982 Oldsmobile Delta 88
1972,1975,1983-1986 Pontiac Bonneville
1975,1980-1981 Pontiac Catalina
1972,1977-1986 Pontiac Firebird
1972,1975 Pontiac Grandville
1975,1977-1981 Pontiac LeMans
1969-1970,1972-1974,1977-1986 Pontiac Parisienne
1977-1979 Pontiac Phoenix
1977-1981 Pontiac Laurentian
1970-1972 Chevrolet Biscayne Kingswood Townsman
1973-1974 Chevrolet Blazer K20 Pickup K30 Pickup
1970,1972 Chevrolet Brookwood
1970-1973 Chevrolet Chevelle
1974 GMC G25/G2500 Van K15/K1500 Suburban K25/K2500 Suburban K35/K3500 Pickup G15/G1500 Van C35/C3500 Pickup
1971-1974 GMC G35/G3500 Van
1973-1986 GMC Jimmy
1973-1974 GMC K15/K1500 Pickup K25/K2500 Pickup C15/C1500 Suburban C25/C2500 Pickup
1975,1978-1983 Chevrolet Malibu
1979-1988 GMC G3500
1975,1977 Oldsmobile Custom Cruiser
1978-1980,1982 Oldsmobile Cutlass Calais
1975,1977-1983 Pontiac Grand LeMans
1975-1976,1978-1980,1983-1986 Pontiac Grand Prix
1977 Pontiac Ventura
1972-1974 Chevrolet C10 Pickup
1974 Chevrolet C20 Pickup K10 Pickup C30 Pickup G10 Van G30 Van
1972-1974 GMC C15/C1500 Pickup
1977-1979 Oldsmobile Omega Starfire
1972,1974 Chevrolet G20 Van
1972,1974 GMC C25/C2500 Suburban
1975-1982 Checker Marathon
1975-1979 Chevrolet Monza
1971-1977 GMC Sprint
1975,1978-1980 Pontiac Grand Am
1978-1979 Pontiac Sunbird
