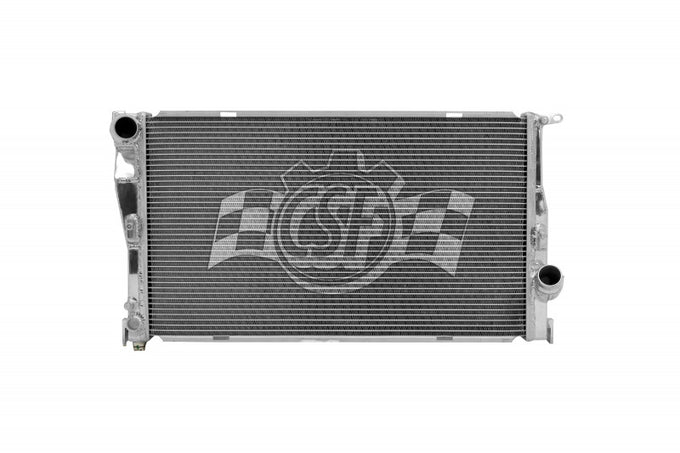

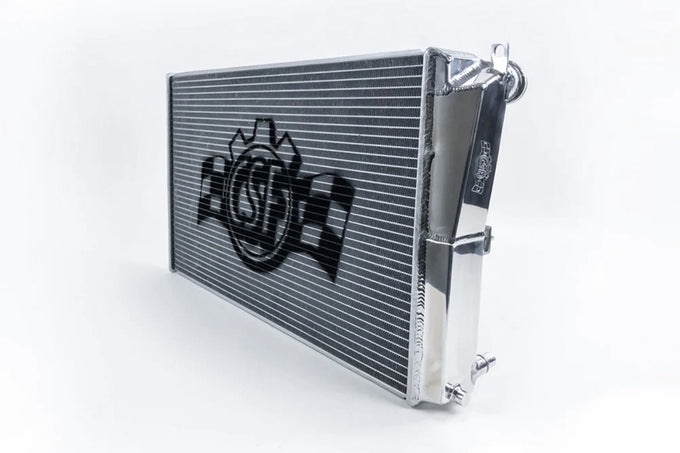

High-Performance All-Aluminum Radiator <br> 12-16 BMW 3/4 Series M235i xDrive
High-Performance All-Aluminum Radiator <br> 12-16 BMW 3/4 Series M235i xDrive
CSF

High-Performance All-Aluminum Radiator
12-16 BMW 3/4 Series M235i xDrive

SKU: CSF-7081
$645.00

Availability: In Stock

Compatibility
Specification
Product Description Reviews
Description:

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your F2X/F3X running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes-producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

Features:

  • "Drop-in Fit" Requiring No Modifications to Install-Accepts All Attaching OEM Components Including "Quick-Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
  • 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
  • All-Aluminum Race Style Drain Plug
  • CNC Machined "Quick-Connect" Inlet/Outlet Connections
  • CNC Machined Brackets and Fittings for Superb Fit and Durability
  • Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
  • Replaces OEM Part Number: 17117618807
  • Smooth Satin Finish


  • Package Includes:

  • Radiators


  • Compatible With:

  • 2013-2016 BMW 328i xDrive
  • 2012-2018 BMW 320i
  • 2013-2018 BMW 320i xDrive
  • 2012-2016 BMW 328i
  • 2012-2015 BMW 335i
  • 2013-2015 BMW 335i xDrive
  • 2014-2016 BMW 428i 435i 428i xDrive 435i xDrive 228i
  • 2015-2016 BMW 428i Gran Coupe 435i Gran Coupe 435i xDrive Gran Coupe 428i xDrive Gran Coupe M235i 228i xDrive
  • 2016 BMW M235i xDrive


  • WARNING: This product contains chemicals known to the State. For more information go to https://www.p65warnings.ca.gov/
