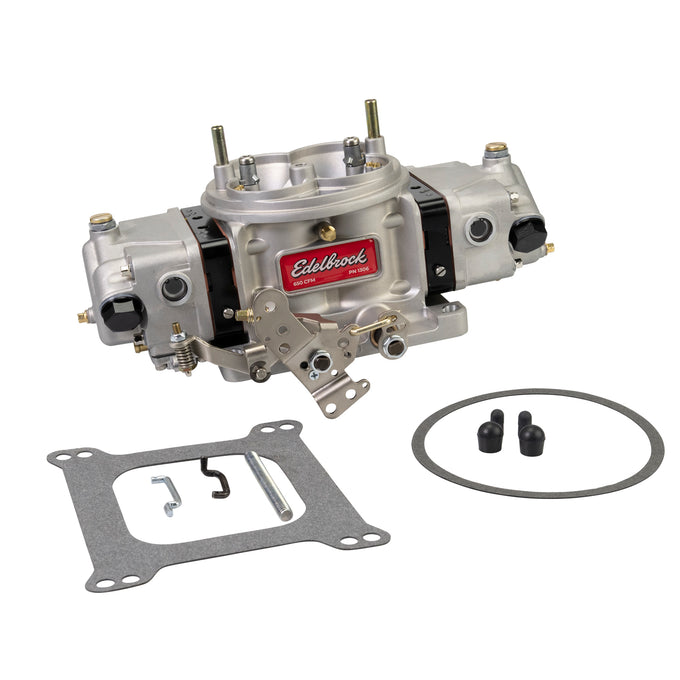

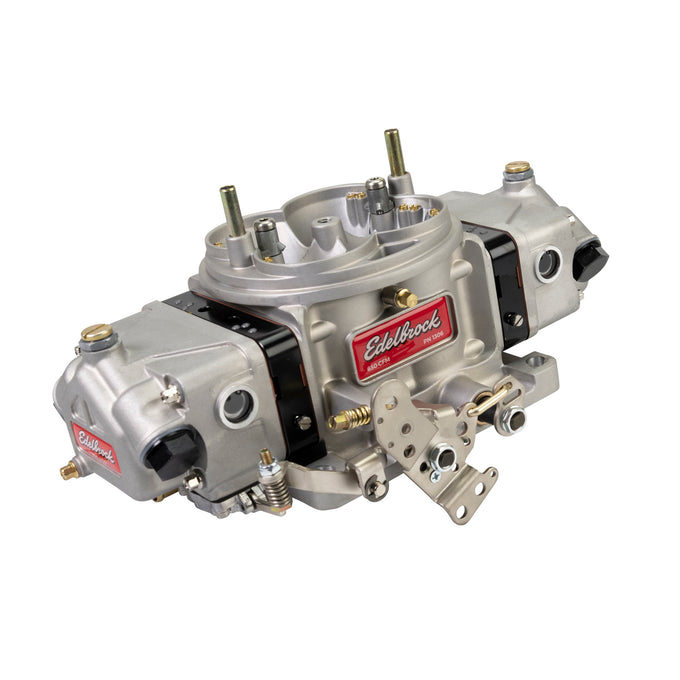

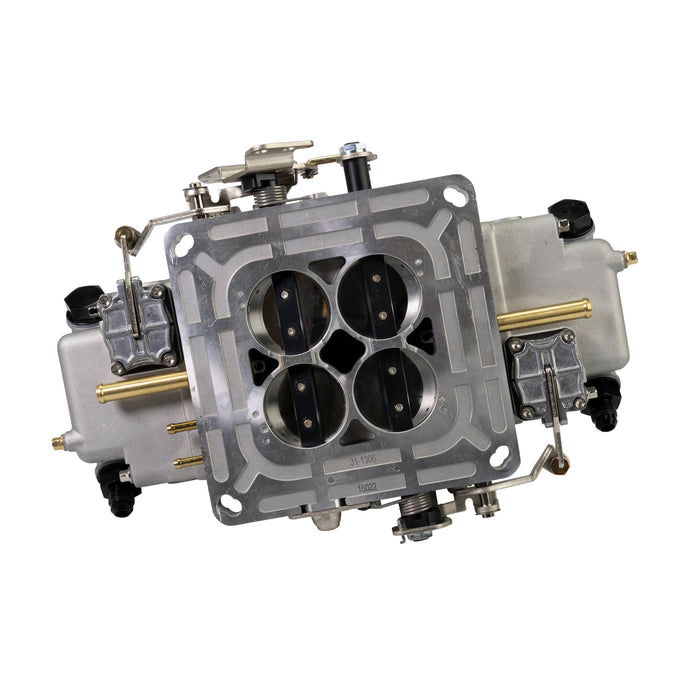

VRS-4150 850 CFM Carburetor, Annular Booster <br> Universal Fit
VRS-4150 850 CFM Carburetor, Annular Booster <br> Universal Fit
VRS-4150 850 CFM Carburetor, Annular Booster <br> Universal Fit
EDELBROCK
®

VRS-4150 850 CFM Carburetor, Annular Booster
Universal Fit

SKU: EDE-1308
$957.95

Availability: Out Of Stock

Specification
Product Description Reviews
Description:

Edelbrock VRS-4150 Race & Performance Carburetor 1308 850 CFM is street friendly but race ready. The one-piece, cast aluminum body fits all 4150 and 4500 carb flange manifolds without requiring an adapter plate. A street throttle arm, Moly-coated throttle shafts and built-in provisions for a standard GM three-wire TPS mount add features to this carburetor that are ideal for any user. Multiple vacuum hook-ups keep this carburetor usable on the street but still ready for the track with larger capacity fuel bowls and four circuit billet metering blocks with screw-in emulsion bleeds. All of these features make for easy tuning and great versatility in many applications. The 20% larger capacity fuel bowls feature internal ribs to control fuel slosh, and a sculpted baffle directs incoming fuel to the sides to minimize bubbles. The floats have corner cuts to avoid shutting off the fuel flow during hard cornering, and jet extender notches and jet extenders in the rear to keep the jets covered in fuel under hard acceleration. VRS carburetors allow users to externally adjust idle bypass air as the adjustment screws are accessible without removing the air cleaner/scoop. The advanced idle circuit features interchangeable idle discharge jets in all four corners to allow for a smooth, clean idle with the use of big, low-vacuum camshafts. Normally found only in high end racing carbs, the VRS includes fully adjustable intermediate fuel circuits, which help to provide incredible throttle response. Finally, for greater control at high RPM, the high speed/main fuel circuit is split into two bleed circuits ¨C one each for the lower and upper sections. As an additional feature, the power valves are located on both primaries and secondaries that support optimized jetting. The power valve will add fuel as necessary while the power valve protection circuit prevents diaphragm damage from backfires.

Features:

  • Accel Pump Well Size: 50 CC
  • Barrel Quantity: 4 Barrel
  • Body Height: 3.75 IN
  • Booster Type: annular
  • Bore Diameter: 1.750 IN
  • Choke Type: N/A
  • Condition: New
  • EGR Port: N/A
  • Finish: Bead Blast
  • Flange Shape: 4150 and 4500
  • Gasket Or Seal Included: Yes
  • Intermediate Circuit: Yes
  • Jet Extenders: Yes- Secondary Side
  • Main Venturi Diameter: 1.39 IN
  • Material: Aluminum
  • Maximum Flow Rating 850 2L
  • Metering Block: Billet- Four Circuit IN
  • Ported Timed Vacuum: Yes (3/16)
  • Primary Power Valve: Yes
  • Related Products: 13201
  • Secondaries: Mechanical
  • Secondary Power Valve: Yes
  • Series: VRS-4150
  • Standard Vacuum: 2 - 3/8 dia. and 2- 3/16 dia


  • Package Includes:

  • VRS-4150 Carb 850 CFM 1308
