Engine Cylinder Head <br> Universal Fit
Engine Cylinder Head <br> Universal Fit
EDELBROCK
®

Engine Cylinder Head
Universal Fit

SKU: EDE-615469
$1,821.50

Availability: Out Of Stock

Specification
Product Description Reviews
Description:

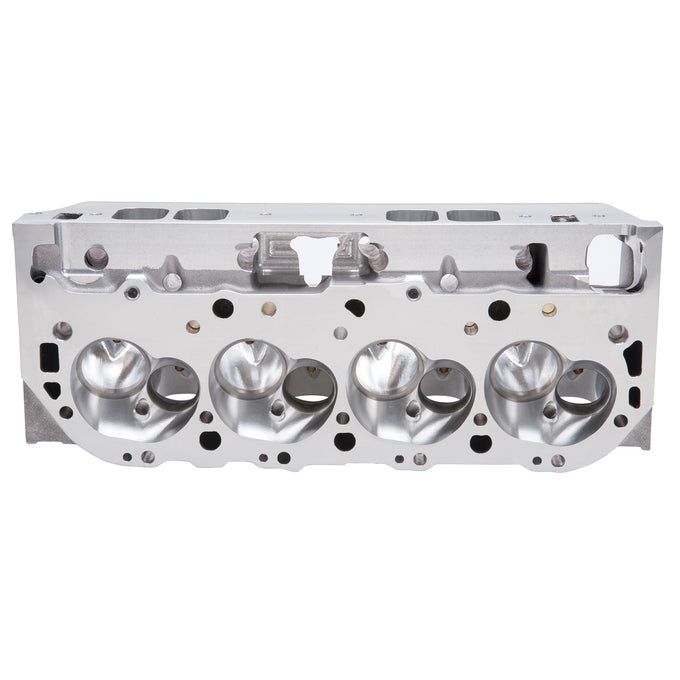

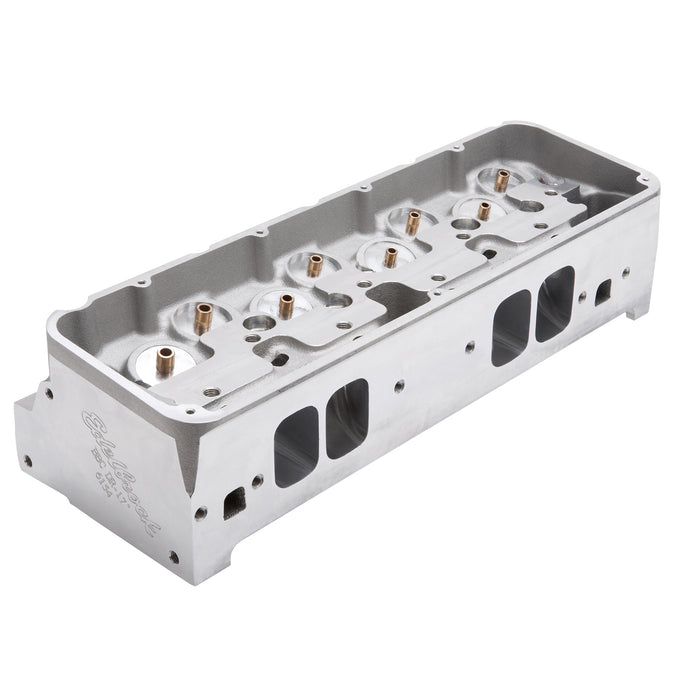

The Edelbrock 615469 Big Block Chevy DR-17 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Features:

  • CNC Ported: No
  • Combustion Chamber Volume: Possible 92 CCM
  • Construction Type: Pro-Port Raw
  • Deck Thickness: 0.5625 IN
  • EGR Port: No
  • Exhaust Port Entry: 1.50 in x 1.30 IN
  • Exhaust Valve Diameter: (Suggested) 1.50 in x 1.30 IN
  • Exhaust Valve Pierce Points (X,Y)(C): 1.193 in, -0.580 IN
  • Family: Victor
  • Guide Material: Manganese Bronze
  • Intake Port Entry: 1.40 in x 1.80 IN
  • Intake Valve Diameter: (Suggested) 1.40 in x 1.80 IN
  • Intake Valve Pierce Points (X,Y)(C): -0.773 in, 0.291 IN
  • Quantity: Sold Individually
  • Retainer Included: No
  • Seat Angle: Exhaust 45 deg/Intake 45 DD
  • Seat Material: Ductile Iron
  • Series: Pro-Port
  • Specialty: Hot Isostatic Pressing (HIP) Processing
  • Valve Angle: 17 DD
  • Valve Guides Included: Yes
  • Valve Seats Included: Yes


  • Package Includes:

  • Edelbrock BBC Cylinder Head
