Description:
The Edelbrock 1901 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. 1901 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs 8008 or 8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
Features:
Barrel Quantity: 4 Barrel
Body Height: 3.25 IN
Booster Type: annular
Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875 IN
Choke Type: Electric
Condition: New
EGR Port: No
Finish: Satin
Flange Shape: Square
Gasket Or Seal Included: Yes
Main Venturi Diameter: 1.19 IN
Material: Aluminum
Maximum Flow Rating: 500 2L
Metering Rod Size: .070 x .052 IN
Primary Jet Diameter: 0.095 IN
Recommended Use: For Single Carb Applications
Secondary Jet Diameter: 0.095 IN
Series: AVS2
Spring Force: 5 Hg (Orange)

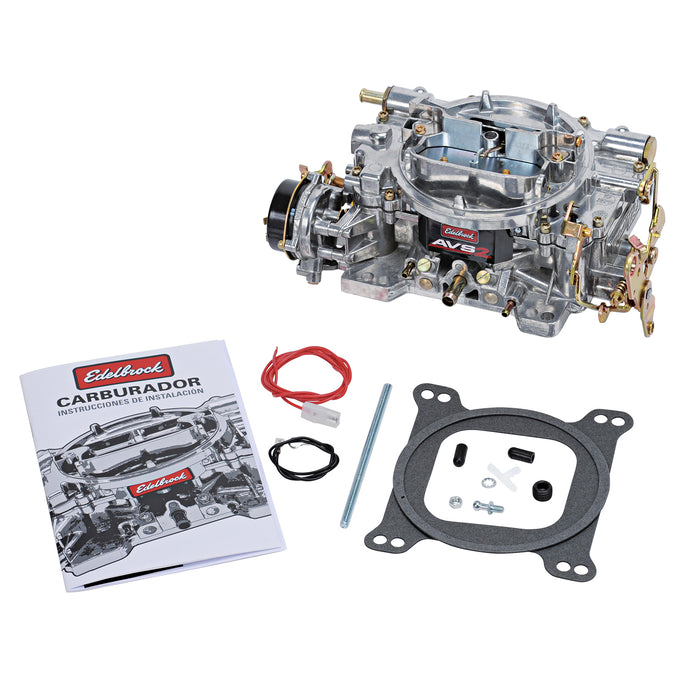

Package Includes:
Edelbrock AVS2 500 cfm Carburetor
Compatible With:
1978-1980 Chrysler Cordoba LeBaron
1979-1980 Chrysler Newport
1978-1981 Chrysler Town & Country
1979 Dodge RD200 D100
1979-1980 Dodge B100 B200 B300 CB300 D200 St. Regis W200
1978-1980 Dodge Aspen
1982 Dodge B150
1981-1983 Dodge B250 D350
1982-1983 Dodge B350 D250 W350
1978 Dodge Charger Monaco
1979-1983 Dodge D150 W150
1980 Dodge D300 Mirada
1978-1981,1983,1985 Dodge Diplomat
1978-1979 Dodge Magnum
1979,1981 Dodge Ramcharger
1981-1982 Dodge W250
1956,1978 Plymouth Fury
1980,1985 Plymouth Gran Fury
1979 Plymouth PB100
1981 Plymouth PB150
1979-1980 Plymouth PB200
1981-1983 Plymouth PB250 PB350
1979,1981 Plymouth Trailduster
1978-1980 Plymouth Volare
1978-1981 Buick Century
1980-1989 Buick Electra
1964-1965,1980-1990 Buick LeSabre
1964,1980-1983 Buick Estate Wagon
1978-1980,1982-1987 Buick Regal
1986 Cadillac Fleetwood
1987-1990 Cadillac Brougham
1985 Chevrolet Astro K20
1981-1986 Chevrolet K5 Blazer C10 C10 Suburban C20 C20 Suburban G10 G20 K10
1980-1987 Chevrolet Camaro
1980-1984,1986-1990 Chevrolet Caprice
1980 Chevrolet Corvette
1982,1985-1986 Chevrolet G30
1980-1981 Chevrolet Impala
1985-1986 Chevrolet K20 Suburban
1981-1986 GMC C2500 G1500 K1500 C1500 C1500 Suburban Jimmy
1982-1986 GMC C2500 Suburban G2500
1986 GMC C3500
1979-1987 GMC Caballero
1982 GMC K1500 Suburban
1985 GMC K2500 Safari
1952-1953,1980-1984 Oldsmobile 98
1980-1983 Oldsmobile Cutlass Cruiser
1978-1980 Oldsmobile Cutlass
1978-1980,1982-1988 Oldsmobile Cutlass Supreme
1980-1985 Oldsmobile Delta 88 Toronado
1978-1981,1983-1986 Pontiac Bonneville
1979-1981 Pontiac Catalina Laurentian
1979-1987 Pontiac Firebird
1976,1979-1981 Pontiac LeMans
1979-1986 Pontiac Parisienne
1987-1989 Pontiac Safari
1980-1990 Oldsmobile Custom Cruiser
1964-1971,1983 Ford Mustang
1981 Chevrolet Bel Air
1965-1967 Ford Ranchero LTD
1964-1968 Mercury Comet Cyclone
1967-1970 Mercury Cougar
1968 Mercury Montego
1973 Pontiac Ventura
1980 Chrysler New Yorker
1979-1987 Chevrolet El Camino
1983,1986 Chevrolet K10 Suburban
1979-1983 Chevrolet Malibu
1979-1988 Chevrolet Monte Carlo
1985-1986 GMC G3500
1978-1980,1985-1987 Oldsmobile Cutlass Salon
1978-1980,1982-1984 Oldsmobile Cutlass Calais
1976,1979-1983 Pontiac Grand LeMans
1978-1980,1983-1987 Pontiac Grand Prix
1964-1965 Buick Skylark
1964-1969 Dodge Dart
1964-1968 Plymouth Barracuda
1964-1969 Plymouth Valiant
1963-1967 Ford Fairlane
1964-1968 Ford Falcon
1964-1967 Ford Galaxie Country Squire Ranch Wagon Custom Country Sedan
1980-1985 Buick Riviera
1978-1980 Pontiac Grand Am
1959,1961 American Motors Rebel
1964-1967 Mercury Caliente Villager
1963 Mercury Meteor
1962-1963 Oldsmobile F85
1956-1957 Plymouth Belvedere Plaza Savoy Suburban
1967 Sunbeam Tiger
1964 Ford Galaxie 500 Sprint
1961-1962 American Motors Classic
1962-1965 Buick Special
1962 Pontiac Tempest
1966-1967 AC Shelby Cobra
1968 American Motors American
1968 Omega Omega
1964-1965 Ford Falcon Sedan Delivery
1964 Buick Sportwagon
1966-1967 Mercury Capri Voyager
1965-1969 Ford GT40
1953 Oldsmobile Fiesta
1952-1953 Oldsmobile Super 88
