Description:

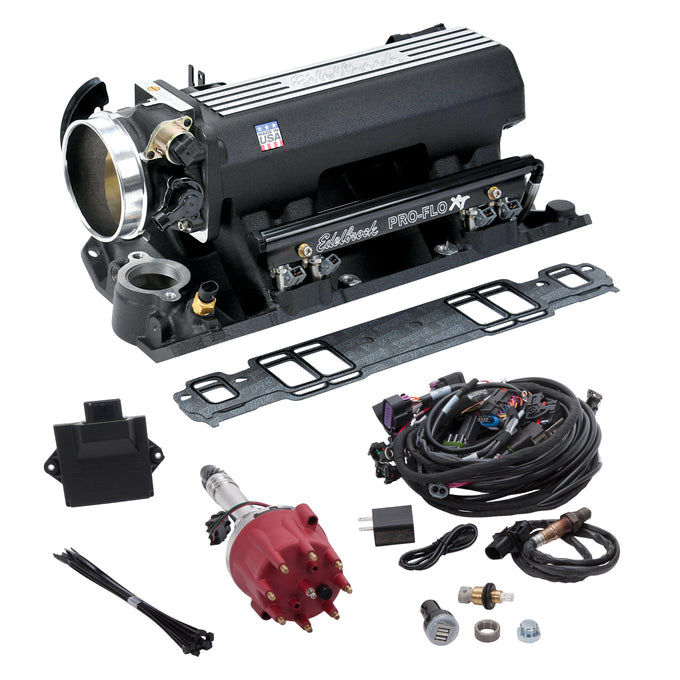

The Edelbrock Pro-Flo 4 XT EFI Kit 35813 for 1986-earlier Small-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a black powder-coated XT intake manifold with large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 550 horsepower with 35 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor and wire harnesses. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app. The E-Tuner includes a Setup Wizard to guide you through setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI 35813 for the Small-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.
Features:
Bore Diameter: 90 MM
Distributor Cap Included: Yes
Finish: Black
Flange Type: XT-Style
Fuel Injector Type: 35 lb/hr
Fuel Pressure Port: 1/8-27 NPT
Gasket Or Seal Included: Yes
Manifold Height: A-9.2 in, B-8.4 in, C-16.9 in, D-2.1 in, E-0 Degrees
Maximum Horsepower: 550
Quantity: Kit
System Type: XT-Style Kit
Throttle Body Type: Single Blade
Wire Harness Included: Yes
Wiring Harness Included: Yes
Package Includes:
Pro-Flo 4 XT EFI 35813 Black for SBC
Compatible With:
1957-1975 Chevrolet Bel Air
1975-1986 Chevrolet K5 Blazer C10 C20 C30 G30 K10 K20 P20 P30 G10 G20
1967-1986 Chevrolet C10 Suburban C20 Suburban K20 Suburban K10 Suburban
1967-1981 Chevrolet Camaro
1966-1982,1985-1986 Chevrolet Caprice
1957-1982,1984-1986 Chevrolet Corvette
1958-1985 Chevrolet Impala
1977-1986 Chevrolet K30
1969-1979 Chevrolet Nova
1975-1978 GMC C25 C25 Suburban C35 G15 G25 K15 K15 Suburban K25 K25 Suburban P25 P35 C15 C15 Suburban G35
1979-1986 GMC C2500 C2500 Suburban C3500 G1500 G2500 K1500 K1500 Suburban K2500 K2500 Suburban K3500 P2500 P3500 C5000 C6000 C1500 C1500 Suburban G3500
1977-1978 GMC K35
1958-1972 Chevrolet Biscayne
1969-1974 Chevrolet Blazer
1958-1961,1969-1972 Chevrolet Brookwood
1960-1974 Chevrolet C10 Pickup K20 Pickup K10 Pickup C20 Pickup C30 Pickup
1964-1973 Chevrolet Chevelle
1963-1968 Chevrolet Chevy II
1957-1958 Chevrolet Del Ray Sedan Delivery
1959-1960,1964-1979 Chevrolet El Camino
1968-1974 Chevrolet K30 Pickup
1959-1961,1969-1972 Chevrolet Kingswood
1970-1977,1981-1984 Chevrolet Monte Carlo
1957 Chevrolet One-Fifty Series Two-Ten Series
1961-1962 Chevrolet P10 Series P20 Series P30 Series
1967,1970-1974 GMC G25/G2500 Van P25/P2500 Van P35/P3500 Van
1970-1974 GMC G35/G3500 Van
1970-1986 GMC Jimmy
1967-1974 GMC K15/K1500 Pickup K15/K1500 Suburban K25/K2500 Pickup K25/K2500 Suburban C15/C1500 Pickup C15/C1500 Suburban C25/C2500 Pickup C25/C2500 Suburban C35/C3500 Pickup
1968-1974 GMC K35/K3500 Pickup
1967,1971-1972 GMC P15/P1500 Van
1960-1973,1975-1986 Chevrolet C50
1960,1962-1963,1965-1969,1972,1976-1986 Chevrolet C60
1979,1986 Chevrolet C70
1957-1966 Chevrolet Suburban
1958-1961 Chevrolet Nomad
1957-1960 Chevrolet Truck
1958 Chevrolet Yeoman
1959 Chevrolet 3B 3C 3D 3E 3F 3G
1959-1961 Chevrolet Parkwood
1960 GMC Truck
1960-1966 GMC 3000 3500
1983-1986 Chevrolet C35 P60
1984-1986 GMC P6000
1975,1978-1981 Chevrolet Malibu
1969-1972 Chevrolet Townsman
1960-1963 GMC 1000 Series 1500 Series 2500 Series
1967,1971-1974 GMC G15/G1500 Van
1980-1986 GMC B6000
1982-1985 Chevrolet C15
1970-1974 Chevrolet G10 Van G30 Van P20 Van P30 Van
1967,1970-1974 Chevrolet G20 Van
1975,1977-1978 Chevrolet P10
1978-1979 GMC Caballero
1971-1977 GMC Sprint
1973 Chevrolet P10 Van
1980-1986 Chevrolet B60
1960-1965 GMC Suburban
1967 Chevrolet K20 Panel
1979 GMC C7000
1960-1962 Chevrolet C40
1969-1970 Chevrolet Estate
