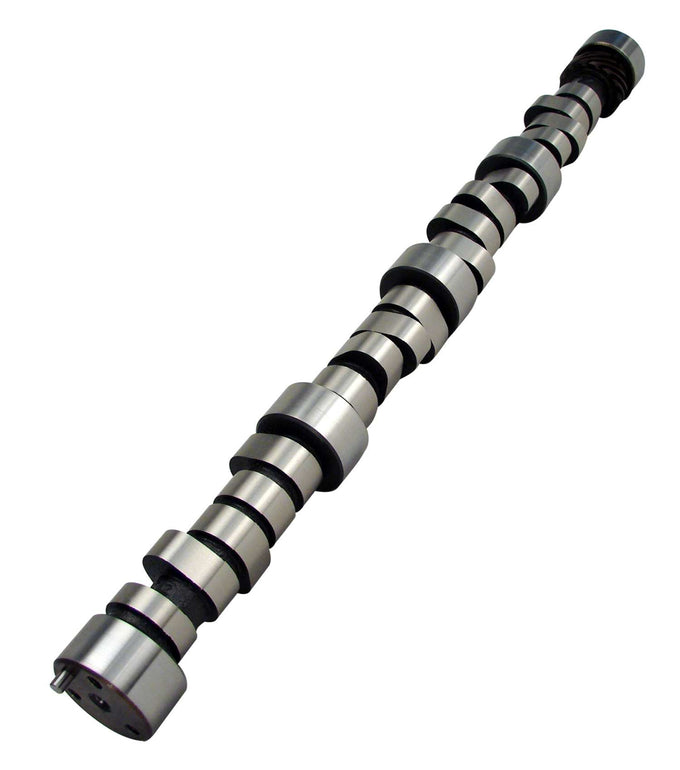

Nitrous HP Hydraulic Roller Camshaft <br> 58-98 Chevy Small Block 262-400 V8
COMP CAMS
®

Nitrous HP Hydraulic Roller Camshaft
58-98 Chevy Small Block 262-400 V8

SKU: CCA-12-415-8
$549.95

Availability: Out Of Stock

Compatibility
Specification
Product Description Reviews
Description:

  • For Retro-Fit (Link Bar) Hydraulic Roller Lifters
    Fits '58-'02 262-400 c.i.d. Chevy Small Blocks
  • Street machine with 125+ nitrous system or small supercharger - 2200+ Stall with lower Gears
  • Nitrous HP-Wider lobe separation and added exhaust duration from base XE Series help shift the power to higher RPM to allow use in nitrous Applications - Early exhaust opening helps scavenge the extra spent gasses from nitrous or forced induction - Better time slips for nitrous passes at the strip
  • WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.
1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If your block has '87+ OEM-style Roller Cam provisions but does not have Roller components fitted, COMP Hydraulic Roller Lifter Install Kit for '91-'02 Blocks can be purchased. As well as a '87+ OE-Style COMP Hydraulic Roller Cam.

Features:

  • Camshaft Series: Nitrous HP
  • Lobe Separation: 113 DD
  • Intake Valve Lift: 0.502 IN
  • Exhaust Valve Lift: 0.52 IN
  • Lifters Included: No
  • Valve Springs Required: Yes
  • Assembly Lubricant Included: No
  • Camshaft Gear Attachment: 3-Bolt
  • Camshaft Material: Austempered Ductile Iron
  • SK-Kit Upgrade: SK12-415-8
  • Usage: Street/Strip
  • Cam and Lifter Kit Upgrade: CL12-415-8
  • Lifter Type: Hydraulic Roller
  • K-Kit Upgrade: K12-415-8
  • Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
  • Cam Type: Hydraulic Roller
  • Grind Number: NX276HR
  • Grind Number: NX276HR
  • Basic Operating RPM Range: 2,000-6,000
  • Intake Duration at .050 Inch Lift: 224 DD
  • Exhaust Duration at .050 inch Lift: 236 DD
  • Advertised Intake Duration: 276 DD
  • Advertised Exhaust Duration: 288 DD


  • Package Includes:

  • Engine Camshaft
