Description:

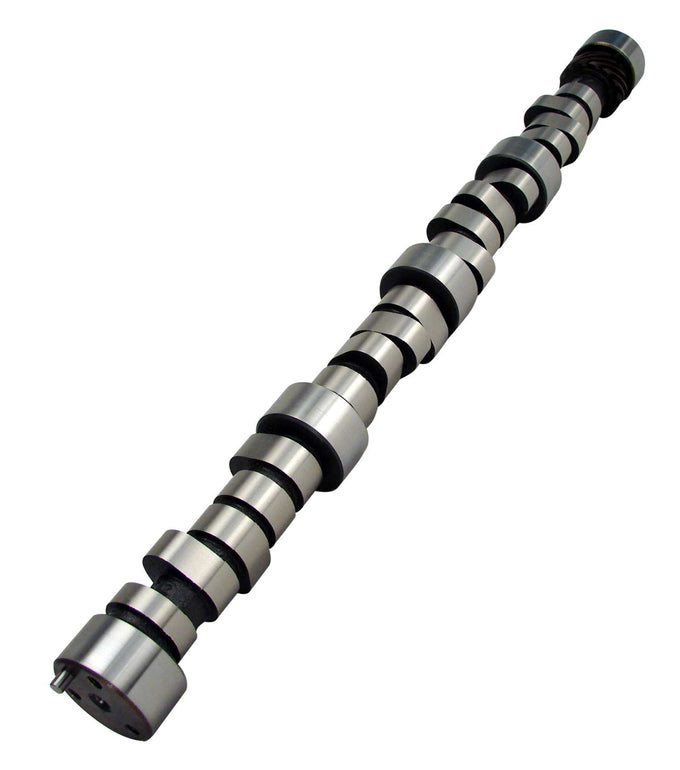

Xtreme Energy 224/230 Hydraulic Roller Cam for Chevy Small Block. Very strong torque with excellent mileage and a smooth idle. Xtreme Energy Cams bridge the gap between Magnum street cams and race only cams. Xtreme Energy Cams provide increased torque, vacuum, response, and power while still providing quiet operation of the valve train and the durability required in daily driven vehicles. Xtreme Energy Benefits:Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve. More vacuum allows a step up in duration for greater performance. Best seller. excellent all around performance in street carbureted applications. Important Considerations: Works best with COMP Cams roller rockers and matched valve springs. Requires other performance parts (intake manifold, headers, etc.) for best performance. Camshaft Part #12-423-8 Grind #XR276HR-10. Duration @ 0.006": 276/ 282deg. Duration @ 0.050": 224/ 230deg. Max Lift w/ 1.5RR: .502" / .510". Lobe Separation: 110deg Lobe ID#'s: 3314 / 3315. Intake Centerline:106deg. Engine Type: Chevrolet 350 Small Block. Bore: 4.040". Stroke: 3.480". Displacement: 356ci. Compression: 9.25:1. Heads: Dart S/R. Intake: Edelbrock performer. Carburetor: Holley #3310 Vac. Sec. Exhaust: 1 5/8" Headers. Max Torque: 427 ft/lbs @ 3700 RPM. Max Power: 373 HP @ 5200 RPM. Manifold Vacuum: 12" Hg @ 800 RPM & 14" Hg @ 1000 RPM w/ no load.
Features:
Camshaft Series: Xtreme Energy
Lobe Separation: 110 DD
Intake Valve Lift: 0.502 IN
Exhaust Valve Lift: 0.51 IN
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
Cam and Lifter Kit Upgrade: CL12-423-8
Usage: Street/Performance
K-Kit Upgrade: K12-423-8
Lifter Type: Hydraulic Roller
SK-Kit Upgrade: SK12-423-8
Cam Type: Hydraulic Roller
Grind Number: XR276HR
Grind Number: XR276HR
Basic Operating RPM Range: 1,900-5,600
Intake Duration at .050 Inch Lift: 224 DD
Exhaust Duration at .050 inch Lift: 230 DD
Advertised Intake Duration: 276 DD
Advertised Exhaust Duration: 282 DD
Package Includes:
Engine Camshaft
Compatible With:
1965-1983,1987-1991 Avanti II
1980-1989 Excalibur Phaeton
1995-1996 AM General Hummer
1973-1974,1977-1981 Buick Century
1968-1974,1978 Buick LeSabre
1973-1974,1977-1980,1982-1987 Buick Regal
1991-1996 Buick Roadmaster Commercial Chassis
1968-1972,1977-1979 Buick Skylark
1993-1996 Cadillac Fleetwood
1990-1992 Cadillac Brougham
1992-1996 Cadillac Commercial Chassis
1955-1975,1981 Chevrolet Bel Air
1969-1974,1987-1994 Chevrolet Blazer
1975-1986 Chevrolet K5 Blazer C10 C30 K10 K20
1967-1986 Chevrolet C10 Suburban C20 Suburban Camaro K20 Suburban K10 Suburban
1988-1995 Chevrolet C1500 C2500 C3500 K1500 K2500 K3500
1992-1995 Chevrolet C1500 Suburban C2500 Suburban K1500 Suburban K2500 Suburban
1975-1987 Chevrolet C20
1966-1996 Chevrolet Caprice
1955-1982,1984-1986 Chevrolet Corvette
1975-1995 Chevrolet G20 G10
1975-1996 Chevrolet G30 P30
1958-1985,1994-1996 Chevrolet Impala
1977-1986 Chevrolet K30
1969-1979 Chevrolet Nova
1975-1989 Chevrolet P20
1987 Chevrolet R10 V10 V20
1987-1988 Chevrolet R10 Suburban R20 R20 Suburban R30 V10 Suburban V20 Suburban V30
1989-1991 Chevrolet R1500 Suburban R2500 Suburban R3500 V1500 Suburban V2500 Suburban V3500
1995 Chevrolet Tahoe
1975-1978 GMC C25 C25 Suburban C35 G15 G25 K15 K15 Suburban K25 K25 Suburban P25 P35 C15 C15 Suburban G35
1979-1986,1988-1995 GMC C2500 C3500 K1500 K2500 K3500 C1500
1979-1986,1992-1995 GMC C2500 Suburban K1500 Suburban K2500 Suburban C1500 Suburban
1978-1987 GMC Caballero
1979-1995 GMC G1500 G2500
1977-1978 GMC K35
1979-1989 GMC P2500
1979-1996 GMC P3500 G3500
1987 GMC R1500 V1500 V2500
1987-1991 GMC R1500 Suburban R2500 Suburban R3500 V1500 Suburban V2500 Suburban V3500
1987-1989 GMC R2500
1992-1995 GMC Yukon
1980,1982-1983 Oldsmobile Cutlass Cruiser
1968-1974,1978-1980,1985-1987 Oldsmobile Cutlass
1971-1974,1978-1980,1983,1985-1987 Oldsmobile Cutlass Supreme
1968-1975,1977 Oldsmobile Delta 88
1970-1975,1983-1986 Pontiac Bonneville
1970-1975,1980-1981 Pontiac Catalina
1968-1974,1977-1997 Pontiac Firebird
1972-1975 Pontiac Grandville
1968-1981 Pontiac LeMans
1959-1974,1977-1986 Pontiac Parisienne
1977-1979 Pontiac Phoenix
1955-1974,1977-1981 Pontiac Laurentian
1973-1974 Buick Apollo
1973 Buick Centurion
1970,1973 Buick Estate Wagon
1958-1972 Chevrolet Biscayne
1959-1961,1969-1972 Chevrolet Brookwood Kingswood
1960-1974 Chevrolet C10 Pickup K20 Pickup K10 Pickup C20 Pickup C30 Pickup
1967-1973 Chevrolet Chevelle
1963-1968 Chevrolet Chevy II
1957-1958 Chevrolet Del Ray
1959-1960,1964-1987 Chevrolet El Camino
1968-1974 Chevrolet K30 Pickup
1970-1988 Chevrolet Monte Carlo
1955-1957 Chevrolet One-Fifty Series Two-Ten Series
1961-1962 Chevrolet P10 Series P20 Series P30 Series
1970-1974 GMC G25/G2500 Van G35/G3500 Van P25/P2500 Van P35/P3500 Van
1970-1991 GMC Jimmy
1967-1974 GMC K15/K1500 Pickup K15/K1500 Suburban K25/K2500 Pickup K25/K2500 Suburban C15/C1500 Pickup C15/C1500 Suburban C25/C2500 Pickup C25/C2500 Suburban C35/C3500 Pickup
1968-1974 GMC K35/K3500 Pickup
1968-1971 Jeep J-100 Wagoneer
1969-1971 Jeep J-2500 J-3800 J-2600
1971-1974 Pontiac Grand Safari
1970-1973 Pontiac GTO
1971-1974,1977 Pontiac Ventura
1980-1990 Chevrolet C50 C60 B60
1986 Chevrolet C70
1980-1990 GMC C5000 C6000
1955-1966,1987-1994 Chevrolet Suburban
1955-1958 Pontiac Pathfinder
1958-1961 Chevrolet Nomad
1955-1958 Chevrolet Sedan Delivery
1955-1960 Chevrolet Truck
1958 Chevrolet Yeoman
1958-1970 Pontiac Strato-Chief
1959 Chevrolet 3B 3C 3D 3E 3F 3G
1959-1961 Chevrolet Parkwood
1960 GMC Truck
1960-1966 GMC 3000 3500
1983-1994 Chevrolet C35
1985-1990 GMC P6000
1975,1978-1983 Chevrolet Malibu
1975,1977,1991-1992 Oldsmobile Custom Cruiser
1978-1980 Oldsmobile Cutlass Salon
1978-1980,1983-1984 Oldsmobile Cutlass Calais
1975-1983 Pontiac Grand LeMans
1970-1976,1978-1980,1983-1987 Pontiac Grand Prix
1969-1972 Chevrolet Townsman
1960-1963 GMC 1000 Series 1500 Series 2500 Series
1971-1974 GMC G15/G1500 Van
1969-1970 Jeep J-2700 J-3500 J-3600 J-3700
1968 Oldsmobile Delmont 88
1973-1974,1977-1979 Oldsmobile Omega
1968-1974 Oldsmobile Vista Cruiser
1980-1991 GMC B6000
1996 Chevrolet Express 2500
1970-1972 Buick GS
1968-1969 Buick GS 350 Special
1991-1995 Chevrolet C3500HD
1991-1995 GMC C3500HD
1982-1985 Chevrolet C15
1970-1974 Chevrolet G10 Van G30 Van P20 Van P30 Van
1967-1974 Chevrolet G20 Van
1968-1972 Oldsmobile F85
1975-1982 Checker Marathon
1975-1979 Chevrolet Monza
1975,1977-1979 Chevrolet P10
1971-1977 GMC Sprint
1977-1979 Oldsmobile Starfire
1973-1975,1978-1980 Pontiac Grand Am
1978-1979 Pontiac Sunbird
1973 Chevrolet P10 Van
1965-1966 Studebaker Daytona Commander Cruiser
1966 Studebaker Wagonaire
1965-1969 Iso Grifo
1967-1969 Iso S4 Fidia
1968-1972 Buick Sportwagon
1968-1970 Pontiac Tempest
1970 Pontiac Executive
1991-1994 Chevrolet Commercial Chassis
1985-1990 Chevrolet P60
1960-1965 GMC Suburban
1964-1971 Pontiac Acadian
1964-1969 Pontiac Beaumont
1992-1993,1995 Isuzu NPR
1965-1967,1969 Iso Rivolta
1969,1972-1973 Iso Lele
1960-1962 Chevrolet C40
1969-1970 Chevrolet Estate
1993 Excalibur Limited
