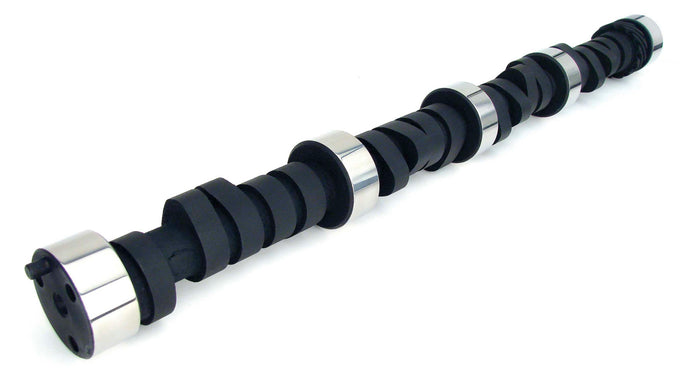

Nitrous HP Hydraulic Flat Tappet Camshaft <br> 58-98 Chevy Small Block 262-400 V8
COMP CAMS
®

Nitrous HP Hydraulic Flat Tappet Camshaft
58-98 Chevy Small Block 262-400 V8

SKU: CCA-12-560-4
$288.95

Availability: Out Of Stock

Compatibility
Specification
Product Description Reviews
Description:

  • For Hydraulic Flat Tappet Lifters
    Fits '58-'02 262-400 c.i.d. Chevy Small Blocks
  • Street machines with 125+ HP nitrous - 2200+ stall, Gears - Choppy idle
  • Xtreme Energy Cams are designed to maximize torque, acceleration and throttle response while providing excellent high RPM horsepower. A faster intake valve opening increases engine vacuum and enhances throttle response. Special intake closing ramps close the valve sooner, providing more cylinder pressure and torque without resulting in excessive valve train noise. Faster ramps achieve maximum velocity sooner, increasing the area under the lift curve and providing maximum horsepower. Smoother exhaust designs allow for a more effective purge of spent gasses from the combustion chamber to further increase horsepower.
  • For Carb or Tunable Fuel Injection3
1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If a Roller Cam is desired and your block has OEM-style Roller Cam provisions. COMP Hydraulic Roller Lifter Install Kit for '87-'90 Blocks or '91-'02 Blocks can be purchased, as well as a '87+ OE-Style Hydraulic Roller Cam.

Features:

  • Camshaft Series: Nitrous HP
  • Lobe Separation: 113 DD
  • Intake Valve Lift: 0.477 IN
  • Exhaust Valve Lift: 0.49 IN
  • Lifters Included: No
  • Valve Springs Required: Yes
  • Assembly Lubricant Included: Yes
  • Camshaft Gear Attachment: 3-Bolt
  • Camshaft Material: Cast Iron
  • Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
  • Cam and Lifter Kit Upgrade: CL12-560-4
  • Usage: Street/Strip
  • K-Kit Upgrade: K12-560-4
  • Lifter Type: Hydraulic Flat Tappet
  • SK-Kit Upgrade: SK12-560-4
  • Cam Type: Hydraulic Flat Tappet
  • Grind Number: NX268H
  • Grind Number: NX268H
  • Basic Operating RPM Range: 2,000-6,200
  • Intake Duration at .050 Inch Lift: 224 DD
  • Exhaust Duration at .050 inch Lift: 236 DD
  • Advertised Intake Duration: 268 DD
  • Advertised Exhaust Duration: 286 DD


  • Package Includes:

  • Engine Camshaft
