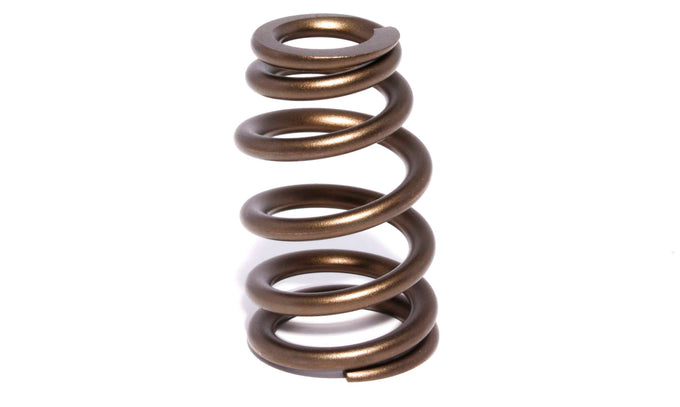

Race Street 1.590in OD Beehive Spring <br> 2.000in Installed Height, 1 Spring
COMP CAMS
®

Race Street 1.590in OD Beehive Spring
2.000in Installed Height, 1 Spring

SKU: CCA-26095-1
$62.95

Availability: Out Of Stock

Specification
Product Description Reviews
Description:

With a .750" maximum lift, these Beehive Valve Springs are recommended for high lift Solid flat tappet and hydraulic Roller cams. They were designed for high performance street and track capabilities, and are used in Harley Davidson engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.
Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26120 1.0951.445 .6501.000 155 @ 1.880 377 @ 1.280 1.230 370 794 795 4696, 4697, 4698 4754


Features:

  • Compatible .570" Guide Diameter Spring Seat: 4711-1
  • Compatible Retainer: 785-1
  • Outer Bottom Spring Outside Diameter: 1.59 IN
  • Outer Bottom Spring Inside Diameter: 1.125 IN
  • Number of Springs: 1
  • Damper: No
  • Compatible Spring Cup (O.D. Locator): 4702-1
  • Compatible Shims: 4757
  • Coil Bind Height: 1.13 IN
  • Outer Top Spring Outside Diameter: 1.186 IN
  • Valve Spring Series: Race/Street
  • Spring Rate: 300
  • Seat Pressure: 150 PS
  • Seat Height: 1.925 IN
  • Outer Top Spring Inside Diameter: 0.721 IN


  • Package Includes:

  • Engine Valve Spring
