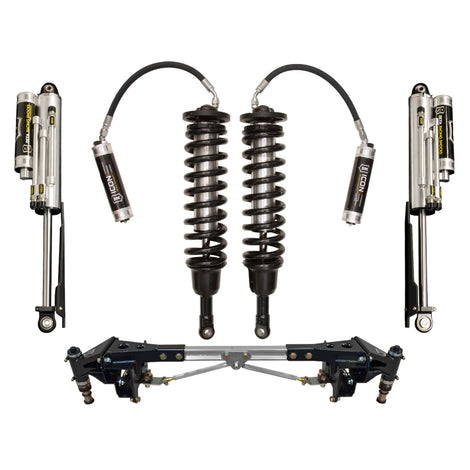

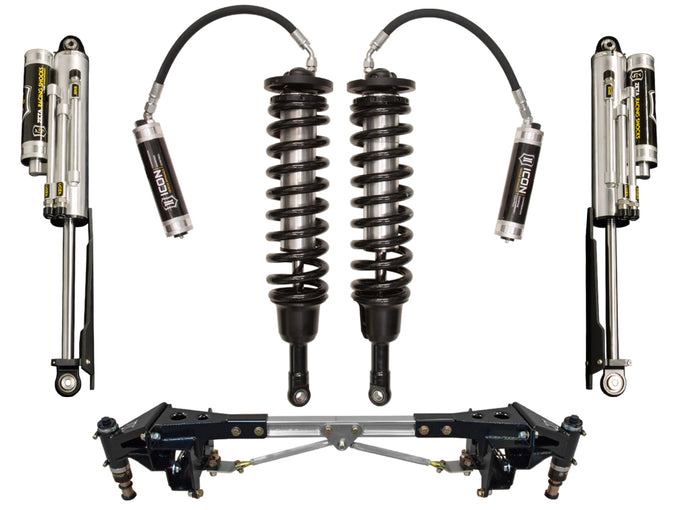

Stage 2 Suspension System <br> 2010-2014 Ford F-150
ICON VEHICLE DYNAMICS
®

Stage 2 Suspension System
2010-2014 Ford F-150

SKU: ICON-K93052
$8,419.68

Availability: Out Of Stock

Compatibility
Specification
Product Description Reviews
Description:

Considering the capability of our high performance 3.0 shocks, many Raptor owners are still using their vehicles beyond Fords intended design requiring further performance upgrades. These trucks are often loaded with additional weight, which when combined, results in VERY high suspension impact speeds. The factory rear bump stop is made of foam rubber and is limited on how much energy it can absorb. Ford Raptors have a couple of unique issues that are problematic for proper control of bump stop forces. The factory rear bump stops are mounted in a manner that allows for the rubber to squish out to the side of its mount, allowing metal to metal contact. The frame surrounding the OEM bump stop mount is not capable of these kinds of forces and with repeated abuse can lead to frame damage not covered by warranty. A more robust solution is a hydro-pneumatic bump shock or "air bump".

Features:

  • 3.0 OEM Replacement Piggyback Reservoir Zeta 3 Tube Bypass Rear Shocks
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shocks
  • 6061 Solid billet cross bar that is polished & anodized
  • Adjustable Ride Height from 1 ¨C 3¡± of Lift
  • Bump stop striker pad does not require leaf spring disassembly
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off-road use
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning Adjustment
  • Easy bolt on installation without having to remove the truck bed
  • Easy-to-Adjust Detented Adjustment Knobs Offer Quick Adjustability without the Use of Tools
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Extended Droop Travel and Increased Overall Performance on and off road
  • High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
  • High Resolution Bypass Valves Designed for Noticeable Fine Tune Adjustments in Rebound and Compression
  • Hydro-pneumatic bump stop increases bump energy capacity
  • ICON Engineered Eibach 3 5/8¡± ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Integrated adjustability for future ICON Raptor specific products
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • Key Features of Hydraulic Bump Stop System:
  • Key Features of the Raptor Front 3.0 Coil Over Shock:
  • Key Features of the Raptor Rear 3.0 Bypass Shock:
  • Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
  • Nitrogen Charged 6063-T832 Aluminum 10¡± Remote Reservoirs that are Precision CNC Honed & Hard Anodized
  • Oversized 1¡± Heavy Duty CNC Machined Shock Shafts
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Reduces rear end kick and improves overall performance
  • Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
  • Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud ¡°Clicking¡± Noise you will find with Other Brands
  • UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit
  • Velocity sensitive hydraulic bump stop increases the amount of energy absorbed the faster it is hit


  • Package Includes:

  • Suspension Lift Kit


  • Compatible With:

  • 2010-2014 Ford F-150
