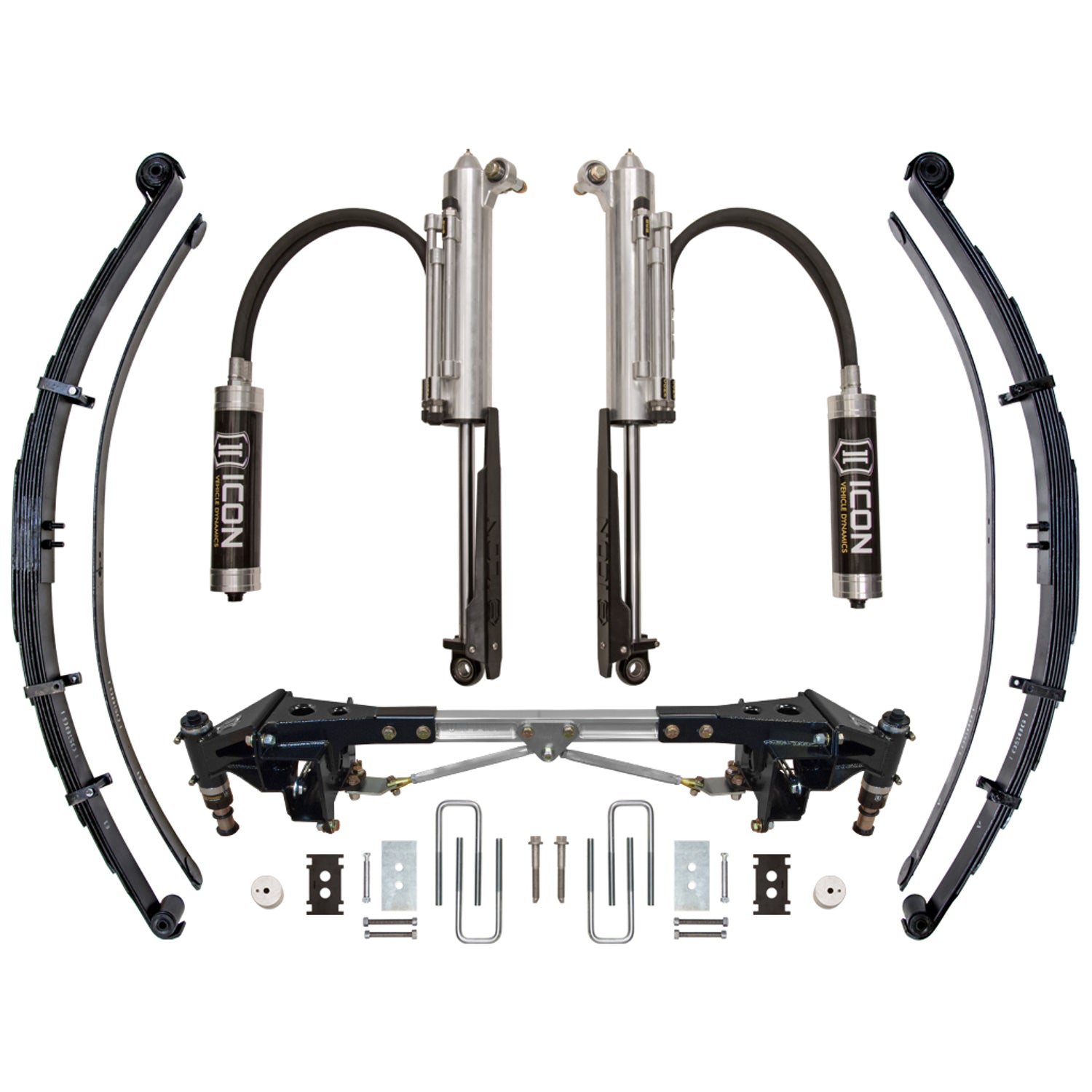

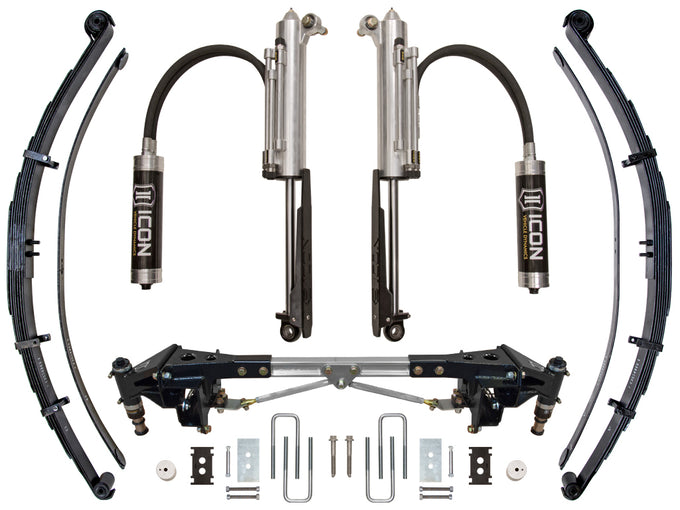

RXT System <br> 2010-2014 Ford F-150
ICON VEHICLE DYNAMICS
®

RXT System
2010-2014 Ford F-150

SKU: ICON-K93055
$7,843.70

Availability: In Stock

Compatibility
Specification
Product Description Reviews
Description:

ICON Raptor Rear Bump Stop Kit: The job of the bump stop is to control and limit the final position of the suspension during up-travel. The OE rear bump stop is made of foam rubber, is limited on how much energy it can absorb, and is also a limiting factor in the amount of travel that can be had in the rear of the Raptor. The ICON Raptor Rear Bump Stop Kit utilizes a velocity-sensitive 2.0 hydraulic bump stop that increases the amount of energy absorbed the faster it is hit. This kit was originally designed to limit bump at the factory location, but has always had a provision to allow for more up-travel through the use of a removable spacer. When combined with the RXT leaf spring and rear shock, the spacer can be removed resulting in a drastic increase in up-travel and off-road performance.

Features:

  • Hydraulic Bump Stop System: 6061 Solid billet cross bar that is polished & anodized
  • Hydraulic Bump Stop System: Bump stop striker pad does not require leaf spring disassembly
  • Hydraulic Bump Stop System: Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
  • Hydraulic Bump Stop System: Comfortable on road manners with sufficient damping capability under extreme load
  • Hydraulic Bump Stop System: Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Hydraulic Bump Stop System: Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Hydraulic Bump Stop System: Easy bolt on installation without having to remove the truck bed
  • Hydraulic Bump Stop System: Hydro-pneumatic bump stop increases bump energy capacity
  • Hydraulic Bump Stop System: Increases frame rigidity and improves overall vehicle dynamics
  • Hydraulic Bump Stop System: Industry first billet cross beam
  • Hydraulic Bump Stop System: Integrated adjustability for future ICON Raptor specific products
  • Hydraulic Bump Stop System: Pre-tuned and Nitrogen charged for most Ford Raptors
  • Hydraulic Bump Stop System: Reduces rear end kick and improves overall performance
  • Hydraulic Bump Stop System: Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit
  • Raptor RXT Multi-Rate Leaf Spring: +0.75" Lift over stock w/ 300lb constant load
  • Raptor RXT Multi-Rate Leaf Spring: +0.75" lift over stock w/ 600lb constant load
  • Raptor RXT Multi-Rate Leaf Spring: +1.25" Lift over stock
  • Raptor RXT Multi-Rate Leaf Spring: +1.75" lift over stock
  • Raptor RXT Multi-Rate Leaf Spring: 3 User-adjustable spring rates for unique setups
  • Raptor RXT Multi-Rate Leaf Spring: Bump stop extensions included for use when no aftermarket bump stop kit is installed
  • Raptor RXT Multi-Rate Leaf Spring: New Ford OE front spring eye bolts included for easy removal and re-installation of springs
  • Raptor RXT Multi-Rate Leaf Spring: OE style bonded rubber bushings that are maintenance free and do not squeak
  • Raptor RXT Multi-Rate Leaf Spring: Rate Configuration Info:
  • Raptor RXT Multi-Rate Leaf Spring: Rate Option #1: 10% Rate over standard configuration
  • Raptor RXT Multi-Rate Leaf Spring: Rate Option #2: 20% Rate over standard Configuration
  • Raptor RXT Multi-Rate Leaf Spring: Rebound leaf reduces severe axle wrap
  • Raptor RXT Multi-Rate Leaf Spring: Standard: +0.75" Lift over stock
  • Raptor RXT Multi-Rate Leaf Spring: Tip inserts and leaf separators to reduce friction and improve ride comfort
  • Raptor RXT Multi-Rate Leaf Spring: Triple military wrap front eyelet and rear half wrap for increased durability
  • Raptor RXT Rear 3.0 Bypass Shock: 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
  • Raptor RXT Rear 3.0 Bypass Shock: Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
  • Raptor RXT Rear 3.0 Bypass Shock: Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
  • Raptor RXT Rear 3.0 Bypass Shock: Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
  • Raptor RXT Rear 3.0 Bypass Shock: High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
  • Raptor RXT Rear 3.0 Bypass Shock: High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
  • Raptor RXT Rear 3.0 Bypass Shock: Multi stage cad plated finish with polished and anodized top cap / rod ends
  • Raptor RXT Rear 3.0 Bypass Shock: Protective shin guards standard with every kit
  • Raptor RXT Rear 3.0 Bypass Shock: Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
  • Raptor RXT Rear 3.0 Bypass Shock: Replaceable bypass tubes that can easily be replaced if damaged
  • Raptor RXT Rear 3.0 Bypass Shock: Special engineered damped valve seats for quiet and precise operation without the standard bypass loud ¡°clicking¡± noise you will find with other brands
  • Raptor RXT Rear 3.0 Bypass Shock: Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location


  • Package Includes:

  • Suspension Lift Kit


  • Compatible With:

  • 2010-2014 Ford F-150
