ICON-K93154

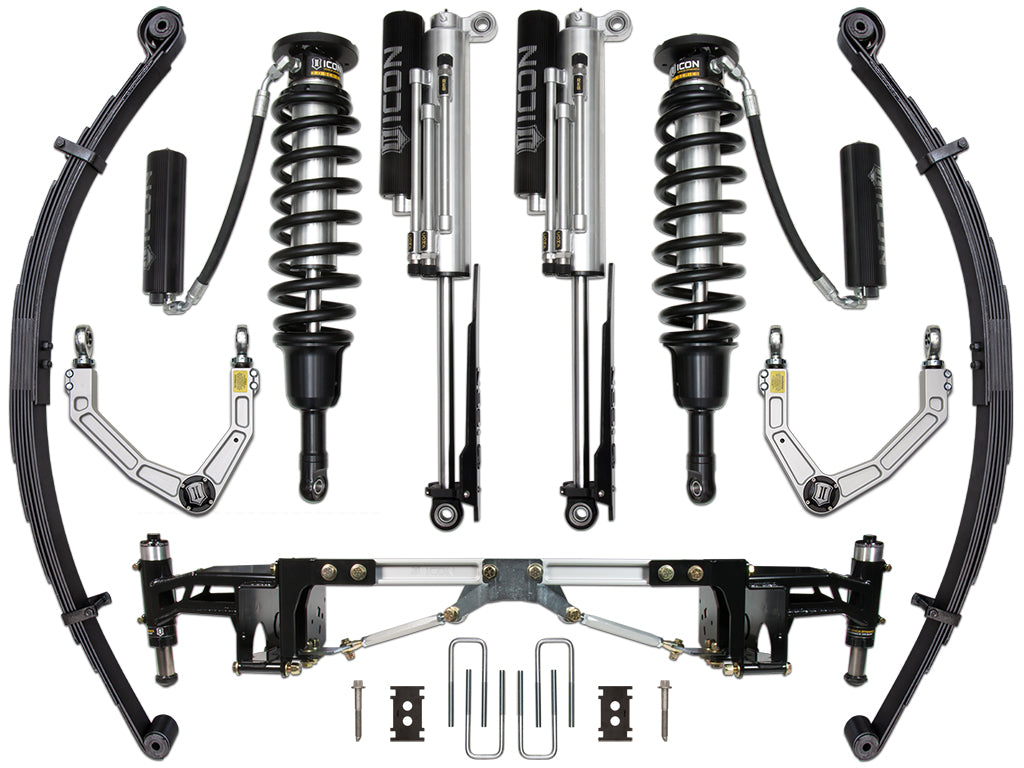

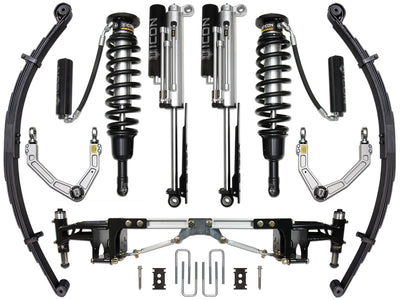

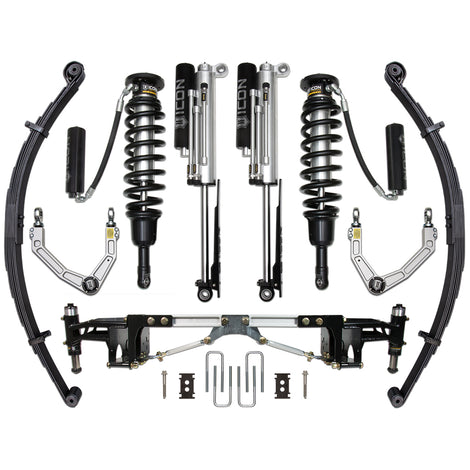

Stage 4 Suspension System <br> 2017-2020 Ford F-150
ICON VEHICLE DYNAMICS

Stage 4 Suspension System
2017-2020 Ford F-150

SKU: ICON-K93154
NEW
$13,036.80

Availability: Out Of Stock

Compatibility
Specification
Product Description Reviews
Description:

After hundreds of hours of R&D and thousands of miles of real world on and off-road testing, ICON engineers have developed products that provide a true performance upgrade over the factory components found on the 2017-2020 Ford F150 Raptor. The Gen. 2 Raptor is faster, lighter, and smarter than its older brother - suspension mounting locations have changed, a significant amount of weight was trimmed off of the truck, and new technology has been introduced both on the side of safety and performance. In typical ICON fashion, the new Raptor was pushed to its limits in stock trim to build a list of performance ¡°needs and wants¡±. After this process, the ICON engineering team began to go over the truck front to rear to identify any opportunities to overcome the limits of the OE suspension and achieve the gains laid out in the previous phases of R&D.

Features:

  • ¡°ICON 1K¡± tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • 2.5¡± travel hydraulic bump stop reduces rear end ¡®kick¡¯ and improves overall vehicle performance
  • 3 user-adjustable spring rates for unique vehicle setups
  • 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
  • 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
  • 3.0 SERIES COILOVER SHOCK KIT
  • 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
  • 6061 billet aluminum crossmember increases chassis rigidity to improve overall vehicle dynamics
  • Adjustable coilovers yield 1-3¡± of front lift height
  • Adjustable tension rods allow the frame to be preloaded to withstand torsional force during hard impacts
  • Barreled coil spring design maximizes travel and provides more efficient packaging
  • BILLET ALUMINUM UPPER CONTROL ARM KIT
  • Bolt-in design makes for an easy install into OEM shock location
  • Bolt-on installation does not require any fabrication or removal of the bed
  • Built in o-ring sealed dust cover cap
  • Built-in caster correction improves front end geometry
  • CAD plated shock body with hard anodized piston and top cap
  • Camber and caster adjustability allows for precise wheel alignment
  • CNC machined 6061 billet aluminum construction for light weight and exceptional strength
  • Direct bolt-in to OEM spring location makes for an easy install
  • Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
  • Easy-to-adjust detented knobs offer quick adjustability without the use of tools
  • FK Rod End COM12 spherical bearings ensure maximum strength and durability
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Fully serviceable
  • Heavy duty 1.25¡± CNC machined nitro steel shafts
  • Heavy duty CNC machined 1¡± shock shafts
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • HYDRAULIC REAR BUMP STOP KIT
  • ICON double adjuster sleeves for easy on-vehicle adjustment
  • ICON¡¯s multi-stage hydraulic ¡°Bump Zone¡± exponentially increases bottom-out resistance in the last 40% of compression travel
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Leaf separators and tip inserts reduce noise and friction while increasing ride comfort
  • MULTI-RATE LEAF SPRING KIT
  • Multi-stage CAD plated body for maximum corrosion resistance
  • Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
  • Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
  • PTFE Lined 7/8¡± FK Rod Ends increase rigidity and improve response
  • Rebound leaf reduces severe axle wrap
  • Replaceable noise-reducing striker pad
  • Specially engineered damped valve stops for quiet and precise operation without the loud ¡°clicking¡± noise common with other brands
  • Steel clamshell brackets strengthen the frame in critical areas to prevent damage from extreme off-road use
  • Superior low speed control reduces body roll and increases on-road stability
  • Triple military wrap front eyelet and rear half wrap for increased durability
  • Urethane shin guards help to protect the shock shaft & rod end from premature wear
  • Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
  • Vehicle specific taper pin provides OE-like fitment
  • Velocity sensitive technology exponentially increases bottom-out resistance


  • Package Includes:

  • Suspension Lift Kit


  • Compatible With:

  • 2017-2020 Ford F-150
