ICON-K93054

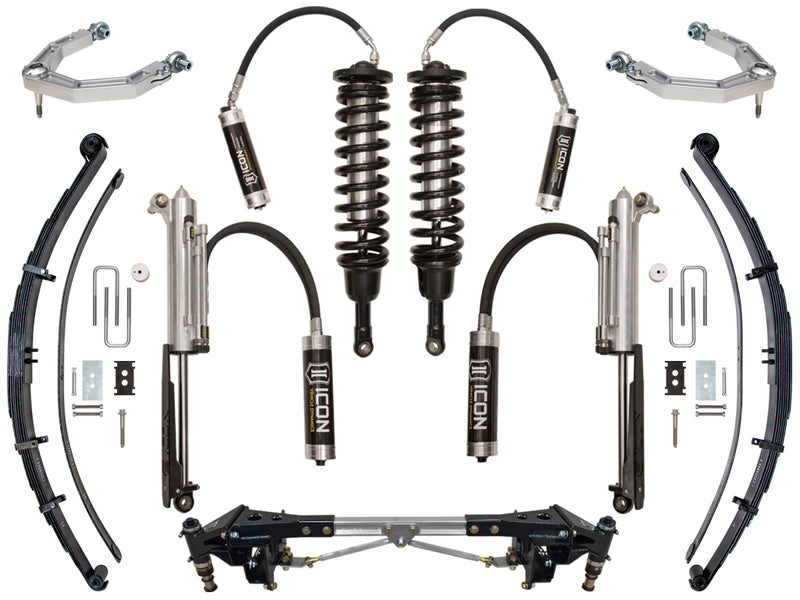

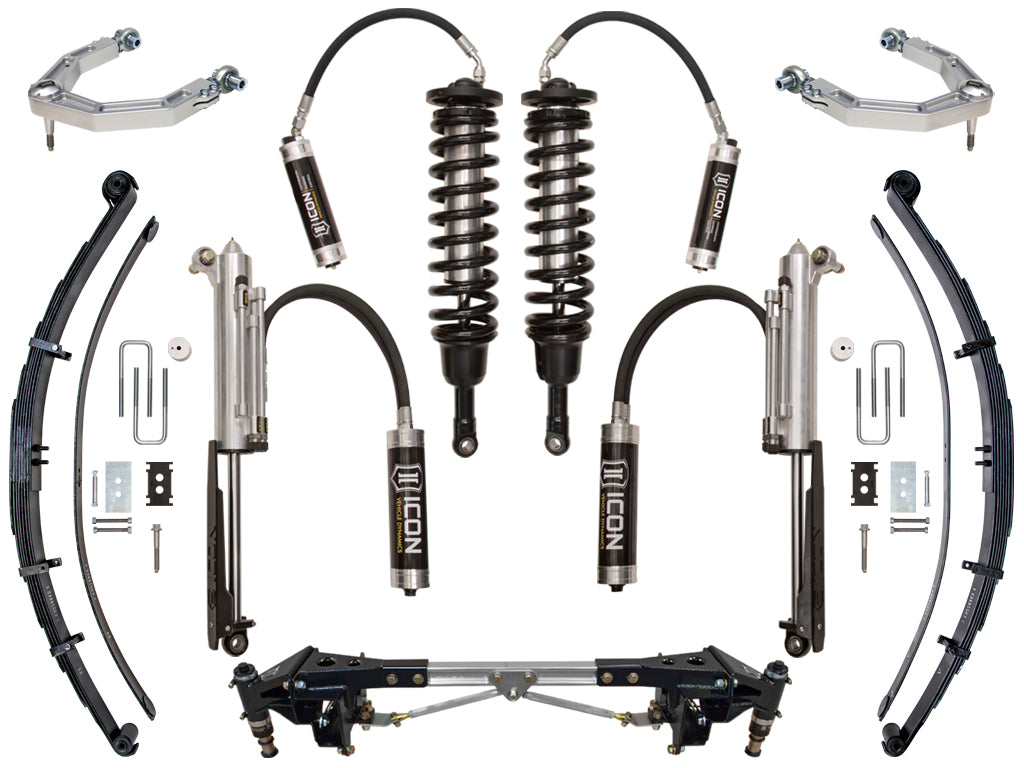

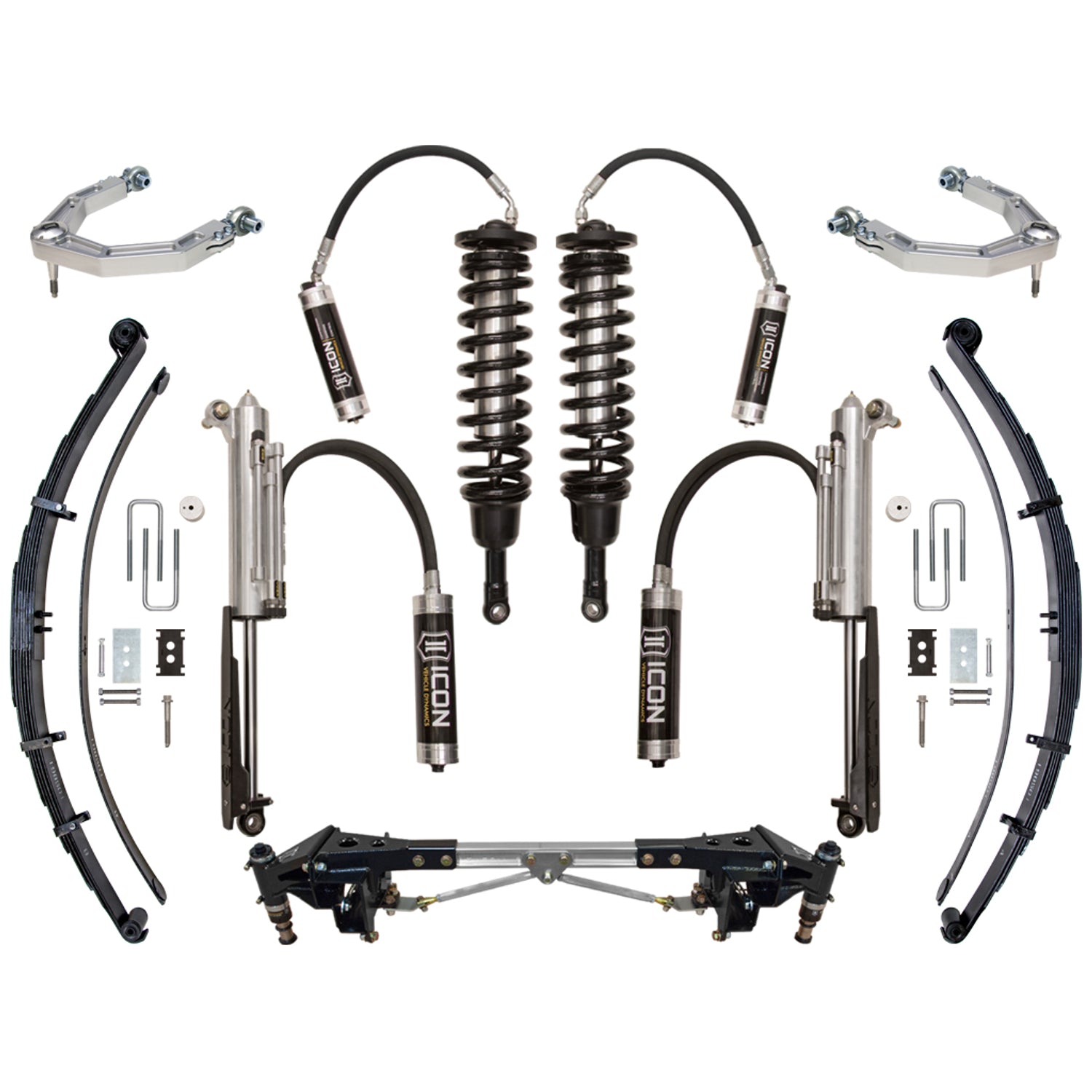

Stage 4 Suspension System <br> 2010-2014 Ford F-150
ICON VEHICLE DYNAMICS

Stage 4 Suspension System
2010-2014 Ford F-150

SKU: ICON-K93054
NEW
$12,898.43

Availability: Out Of Stock

Compatibility
Specification
Product Description Reviews
Description:

ICON Raptor 3.0 Coilovers and Billet Upper Control Arms:

Features:

  • 17-4 Stainless Steel Taper Adapter Pin Provides OEM Like Fitment
  • 3 User-adjustable spring rates for unique setups
  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coilover Shocks
  • 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
  • 6061 Billet Aluminum
  • 6061 Solid billet cross bar that is polished & anodized
  • Adjustable Ride Height from 1 ¨C 3¡± of Lift
  • Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
  • Bump stop extensions included for use when no aftermarket bump stop kit is installed
  • Bump stop striker pad does not require leaf spring disassembly
  • Clamshell brackets strengthen frame in critical areas preventing frame damage from extreme off road use
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Comfortable on road manners with sufficient damping capability under extreme load
  • Cross member and tension rods stabilize frame rails and prevent twisting under hard impacts
  • Designed for increased leaf spring clearance so there is no loss in up travel with stock or aftermarket springs
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
  • Easily Adjustable on the Vehicle for Perfect Wheel Alignments
  • Easy bolt on installation without having to remove the truck bed
  • Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Extended Droop Travel and Increased Overall Performance on and off road
  • High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
  • High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
  • Hydro-pneumatic bump stop increases bump energy capacity
  • ICON Engineered Eibach Springs Offer Increased Travel and Performance
  • Increases frame rigidity and improves overall vehicle dynamics
  • Industry first billet cross beam
  • Integrated adjustability for future ICON Raptor specific products
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
  • Key Features of Hydraulic Bump Stop System:
  • Key Features of the Raptor Front 3.0 Coilover Shock:
  • Key Features of the Raptor RXT Multi-Rate Leaf Spring:
  • Key Features of the Raptor RXT Rear 3.0 Bypass Shock:
  • Key Features of the Raptor Upper Control Arms:
  • Multi stage cad plated finish with polished and anodized top cap / rod ends
  • New Ford OE front spring eye bolts included for easy removal and re-installation of springs
  • Nitrogen Charged 6063-T832 Aluminum 10¡± Remote Reservoirs
  • O-ring sealed dust cover
  • OE style bonded rubber bushings that are maintenance free and do not squeak
  • Oversized 1¡± Heavy Duty CNC Machined Shock Shafts
  • Patented Delta Joint (U.S. Patent No. 10,731,700)
  • Pre-tuned and Nitrogen charged for most Ford Raptors
  • Precision CNC Machined
  • Protective shin guards standard with every kit
  • Rebound leaf reduces severe axle wrap
  • Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
  • Reduces rear end kick and improves overall performance
  • Replaceable bypass tubes that can easily be replaced if damaged
  • RSMX PTFE Lined 7/8¡± Rod Ends
  • Special engineered damped valve seats for quiet and precise operation without the standard bypass loud ¡°clicking¡± noise you will find with other brands
  • Tip inserts and leaf separators to reduce friction and improve ride comfort
  • Triple military wrap front eyelet and rear half wrap for increased durability
  • Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
  • Velocity sensitive Hydro-pneumatic bump stop increases the amount of energy absorbed the faster it is hit


  • Package Includes:

  • Suspension Lift Kit


  • Compatible With:

  • 2010-2014 Ford F-150
