CA Auto Parts

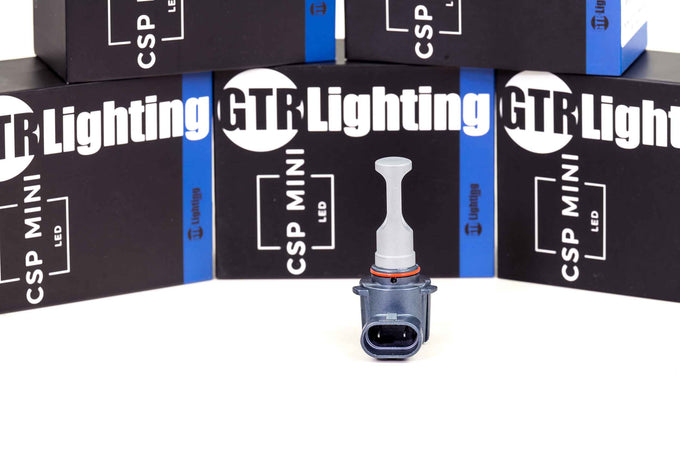

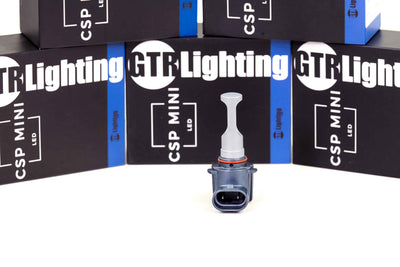

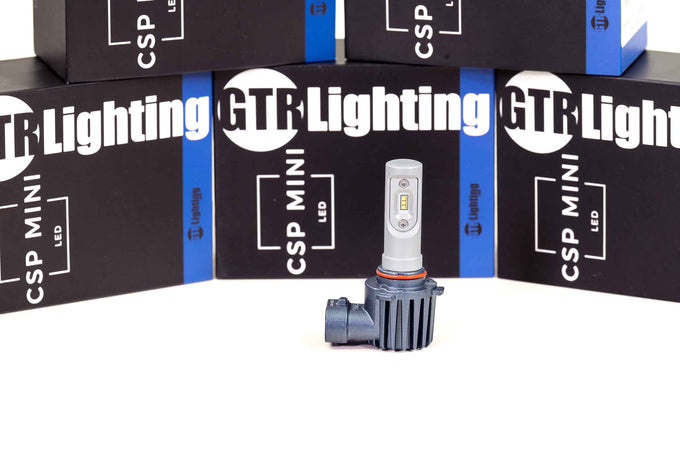

CSP Mini LED Bulb
9005/9145/H10

SKU:

GTRL-SN-LED143
$ 95.50
Availability: In Stock
X
Description:

The GTR Lighting CSP Mini LED bulb: was designed with two main ideas in mind: #1: Perfect Fitment into any fog light housing - specially designed to closely mimic the size and shape of your original halogen light bulb for maximum capability! #2: Perfect Beam Pattern due to the alignment and design of the low-profile copper PCB and Philips Z ES "CSP" style LED chips. This LED configuration: creates a similar light output profile as compared with the original filament bulb for an accurate beam pattern. Heat Sink Technology: No Fan Noise! Fans work well to cool down powerful LED fog light bulbs, but the GTR Lighting CSP Mini is unique blend of power and efficiency that does not require active cooling. Coming in at only 16 watts of power, and featuring the Philips Z ES high-efficiency chips, these bulbs create about 2 times as much light as your original halogen bulbs at less 33% less power consumption. In short, they're super efficient so they don't need a huge fan mounted to the heat sink to stay cool! The powder-coated aluminum body of the bulb acts as the heat sink for both the internal driver and the LED bulbs themselves. Thermal Management: The GTR Lighting CSP Mini LED bulbs are equipped with a sophisticated thermal protection circuit to avoid failures due to overheating problems. We've tested these bulbs at 194 degrees Fahrenheit for 15 days straight without failure! The maximum power draw of these bulbs is 16 watts of power and if the LED thermister sensor reaches a temperature of 140 degrees Fahrenheit or hotter the temperature protection kicks in and reduces the light output to a safe level. This smart technology allows the bulbs to never get so hot that they burn out the chips, which is the most common reason for LED bulb failure. Even at a reduced level of 13 watts of power consumption (to prevent over-heating... ), the GTR Lighting CSP Mini LED fog light bulbs will still be noticeably brighter than your old halogen bulbs! This function happens 100% automatically and ensures the longest possible lifespan of your fog light bulbs! Furthermore: the GTR Lighting CSP Mini LED fog light bulbs are equipped with the highest quality possible chip technology. We use the genuine Philips Z ES "CSP" style LED chips that have a higher heat-resistance rating than other similar versions. Beware of imitators! If someone is selling a bulb that looks like ours, make sure they're using the good chips like Philips ZES! These LED chips are rugged, heat-resistant and create the tightest optical source for the best beam pattern. Your fog light bulb LED chips really do make a difference! Brightness: Your original halogen incandescent fog light bulbs produce roughly 1,000 Lumen per light bulb, at about 55w of power consumption. The GTR Lighting CSP Mini bulbs produce 2,500 Lumen of light at only 16w of power consumption! Not only do these bulbs have the ability to be 2-3 times brighter than your old light bulbs, in most applications they will also mimic the OEM beam pattern to protect other drivers' vision at night! Want your fog lights: to shine brighter and further but your current bulbs just aren't cutting it? Want to get rid of that old yellow tinted light and give your ride an updated look with a cool white light beam? Look no further! Built with high power premium quality Philips Z ES LEDs, these LED fog light bulbs will cast a precise light beam that will give you increased visibility, a wider viewing angle, and a much longer lifetime over conventional halogen bulbs. The bulbs feature great heat management with 1070 aluminum construction, Intelligent Thermal Management, and the newest "CSP" style LED chipset from Philips. Fitment: Match the bulb number of your original application (example: 9005, 9006, H4, H13, etc... ) with the matching GTR Lighting CSP Mini LED fog light bulb and replace bulb for bulb. Fits all applications including projectors, and fog lights with dust shield covers. NOTICE: If your vehicle uses a CAN BUS system to operate the fog lights, you may need additional parts like an LED CANBUS or PWM module. Contact us for details if you are unsure.

Specifics and Features:

  • INTENSITY: 2500lm (raw)
  • Power: 16w
  • Current: 1.17A @ 14V DC
  • INPUT VOLTAGE: 9-16V DC
  • Color Rating: 6000K (Cool White)
  • Compliance: IP67


  • Package Includes:

  • BULB: 1x GTR Lighting 9005/H10 CSP Mini LED Bulb
  • Warranty: 2 Years


  • Compatible With:

  • BASE/FITMENT: 9005/9145/H10
  • DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)


  • PRODUCT DISCLAIMER

    The person that is purchasing this product makes the following representations and acknowledges and agrees to the following terms and conditions:

    This off-road race only product ("this Product") is designed and intended for use in organized, amateur and professional racing events, but is limited to closed-course racing and open-course racing that is formally sanctioned by a recognized racing organization involving the motor vehicle in which it is installed (the "Vehicle"). It is not for use on public highways or roads nor is it for recreational off-road use other than solely for competition purposes. The person or entity buying this Product and/or using this Product (the "User") agrees to use the Vehicle solely for competition uses as described herein, and the User acknowledges that the purchase, installation and use of this Product all comply with federal, state and local laws, rules, regulations and ordinances by the User.

    The User accepting this disclaimer acknowledges and hereby indemnifies and saves harmless to the manufacture(s), its officers, employees, agents, distributors and dealers for any damages, penalties, fines, expenses or other costs which may arise from the use of this Product and without limiting the generality of the foregoing specifically acknowledges the following:

    • Use of this Product for purposes other than solely for competition is a violation of federal law and may violate applicable state or local environmental, motor vehicle and other laws. The User warrants that this Product shall only be used in sanctioned closed-circuit events.
    • That use of this Product may violate warranties from the manufacturer of the Vehicle or from others.
    • That use of this Product may make the Vehicle unfit or unsafe for the purposes intended or for any purpose and cause personal injury, property damage or death.
    • That the installation of this Product, improper installation of this Product, use of this Product with other components or failure to use this Product in conjunction with other components, could result in or cause personal injury, property damage or death.

    THIS PRODUCT IS FOR COMPETITION RACETRACK USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION RACETRACK OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
