Description:
CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years-over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
Features:
OEM specified Plastic Tank-Aluminum Core Construction
Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
Tubes-Welded Type or Latest Generation "B-Tube" Design
Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec
100% leak tested before leaving factory at 150% of operating pressure
Industry Best Packaging-"10 Foot Drop Test" Standard
Drop-in Fit
High Performance Transmission Cooler with special Built-in Turburlator, when applicable
All components are installed, torqued, & tested on Radiator during assembly
Box Length (in): 30 7/8
Box Width (in): 21 15/16
Box Height (in): 5 1/2
Box Weight (lbs): 9
Core Length (in): 15 13/16
Core Width (in): 28 1/4
Core Thickness (in): 5/8
Inlet Length (in): 28 3/4
Inlet Width (in): 1 1/16
Outlet Length (in): 28 3/4
Outlet Width (in): 1 5/8
Top Hose Fitting (in): 1 5/8 Left
Bottom Hose Fitting (in): 1 1/4 Left
No. Of Rows: 1
Oil Cooler (in): 12 13/16 (high-effeciency Concentric Type)
Core Material: Aluminum
Tank Material: Plastic
Cross-flow/ Down-flow: Down Flow
Radiator Cap Supplied: Yes
Csf Cap Number: 4503
Hazardous Material: No
Tech Note: O.E.M. style Plastic tanks & Aluminum core;Multifit model supplied with Unique Dual Sensor design on bottom tank and with pressure cap.
Reference Number: 2569,2599,2797,2911,19010-RAA-A01,19010-RAA-A02,19010-RAA-A11,19010-RAA-A51,19010-RAA-A52,19010-RAA-A61,19010-RAA-A72,19010-RAA-A81,HO3010189,HO3010203,HO3010186,HO3010187,HO3010206,HO3010201,CU2599,CU2797,8012599,8012797,8012911,221-3229
Package Includes:

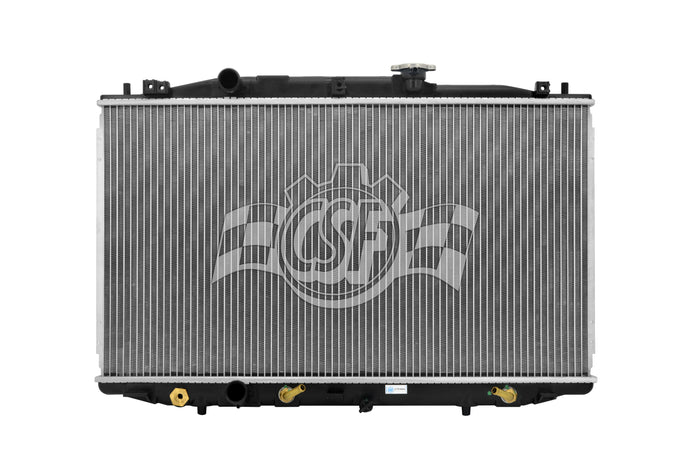

Radiator
Compatible With:
2003-2007 Honda Accord
