CA Auto Parts

SES Intercooler Pipes
17-22 Ford F-250, F-350, F-450, F-550 V8-6.7L Turbo Diesel

SKU:

INJ-SES9004ICPCWR
$ 307.96
Availability: In Stock
Compatibility
X

Select Vehicle

Please select Please select Please select Please select Please select

Total:

$307.96
X

Compatibility

Year Make Model Trim Engine
Description:

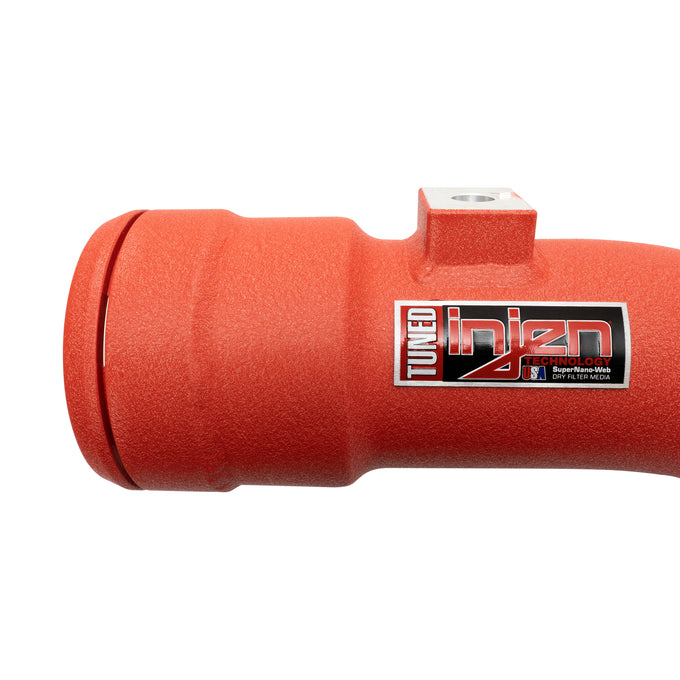

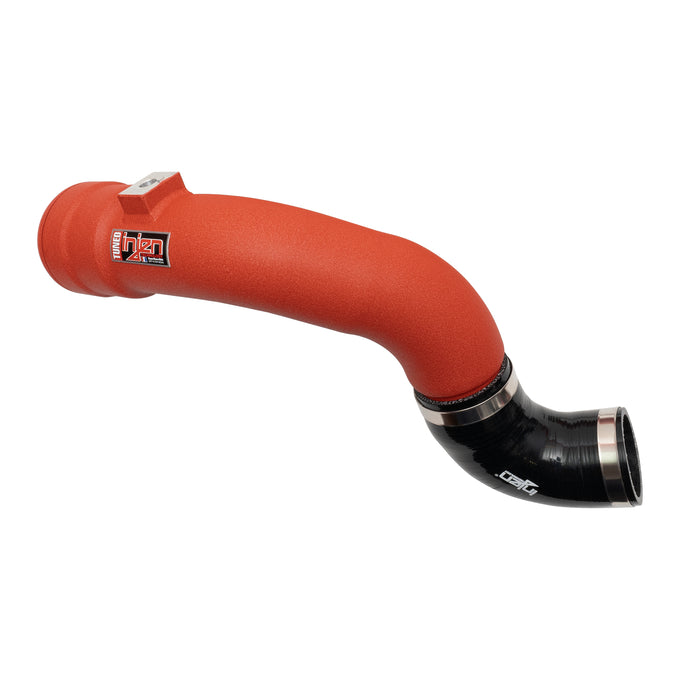

The team at Injen Technology are masters at understanding airflow and efficiency. They've taken this expertise and applied to their charge pipes designs for the 2017-2022 Ford Super Duty Trucks equipped with the 6.7L Power Stroke Diesel. This particular unit is the Cold Side charge pipe and designed to reduce restriction and can be used alone or it pairs perfectly with the Injen Hot Side Charge pipe; P/N SES9004ICPH. This cold side charge pipe is an upgrade over the factory unit and is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. Having an internal diameter of 3.25in, this charge pipe is able to reduce restriction and quickly transfer cool air from the intercooler directly into the engine. The cold side pipe also aides in balancing airflow from the intercooler to improve performance and also helps lower engine damaging exhaust gas temperatures (EGTs). Most importantly, the restrictive OEM cold side pipe is prone to splitting without warning. When your OEM system splits, you lose boost pressure and it can leave you stranded at any moment. Remove that worry and that crack-prone OE charge pipe and give ourself some piece of mind with Injen's cold aide charge pipe. For optimum performance, pair this charge pipe with the Injen's hot side pipe ¨C P/N SES9004ICPH - or purchase them as a complete unit under one part number ¨C SES9004ICP. As always, these charge pipes are available with three different finishes; Polished, Wrinkle Black, and finally Wrinkle Red.

Specifics and Features:
  • Replaces the restrictive and crack-prone OEM charge pipe
  • Cold Side Piping Only
  • Pairs perfectly with Injen's SES9004ICPH Hot Side Charge Pipe
  • For Optimum performance, use with Injen's EVO9004 cold air intake
  • Cold Side Pipe Inside Diameter - 3.25in
  • Manufactured from Mandrel-Bent 6061 Aluminum
  • Precision CNC machined factory-style quick connections utilizing the OE spring clip
  • Works seamlessly with the OE intercooler
  • Available in three finishes Polished - SES9004ICPC Wrinkle Black ¨C SES9004ICPCWB Wrinkle Red ¨C SES9004ICPCWR
  • Stainless Steel Band Clamps with Inner Protective Liner
  • Automotive Grade Reinforced Silicone Couplers
  • Unique Injen Logo Plate for a Refined Style
  • Increase Throttle Response and Decreases Turbo Lag
  • Beaded Tube Ends to Help Prevent Couplers from Coming Off
  • Uses all factory mounting locations
  • Includes all necessary hardware for a hassle-free installation
  • Made in Pomona California, USA
  • Injen Technology Limited Lifetime Warranty
  • Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

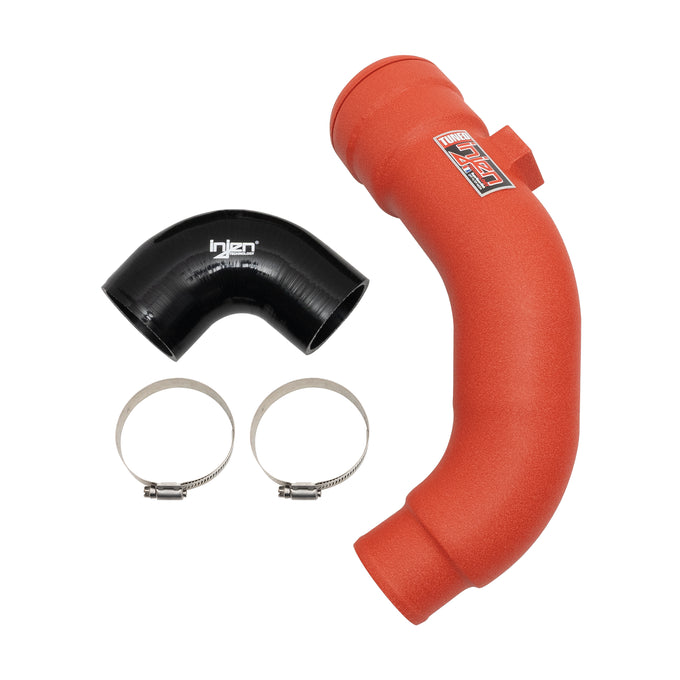

    • Package Includes:
  • Intercooler Pipe


    • Compatible With:
  • 2017-2022 Ford F-250 V8-6.7L Turbo Diesel
  • 2017-2022 Ford F-350 V8-6.7L Turbo Diesel
  • 2017-2022 Ford F-450 V8-6.7L Turbo Diesel
  • 2017-2022 Ford F-550 V8-6.7L Turbo Diesel

    • PRODUCT DISCLAIMER

    The person that is purchasing this product makes the following representations and acknowledges and agrees to the following terms and conditions:

    This off-road race only product ("this Product") is designed and intended for use in organized, amateur and professional racing events, but is limited to closed-course racing and open-course racing that is formally sanctioned by a recognized racing organization involving the motor vehicle in which it is installed (the "Vehicle"). It is not for use on public highways or roads nor is it for recreational off-road use other than solely for competition purposes. The person or entity buying this Product and/or using this Product (the "User") agrees to use the Vehicle solely for competition uses as described herein, and the User acknowledges that the purchase, installation and use of this Product all comply with federal, state and local laws, rules, regulations and ordinances by the User.

    The User accepting this disclaimer acknowledges and hereby indemnifies and saves harmless to the manufacture(s), its officers, employees, agents, distributors and dealers for any damages, penalties, fines, expenses or other costs which may arise from the use of this Product and without limiting the generality of the foregoing specifically acknowledges the following:

    • Use of this Product for purposes other than solely for competition is a violation of federal law and may violate applicable state or local environmental, motor vehicle and other laws. The User warrants that this Product shall only be used in sanctioned closed-circuit events.
    • That use of this Product may violate warranties from the manufacturer of the Vehicle or from others.
    • That use of this Product may make the Vehicle unfit or unsafe for the purposes intended or for any purpose and cause personal injury, property damage or death.
    • That the installation of this Product, improper installation of this Product, use of this Product with other components or failure to use this Product in conjunction with other components, could result in or cause personal injury, property damage or death.

    THIS PRODUCT IS FOR COMPETITION RACETRACK USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION RACETRACK OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
