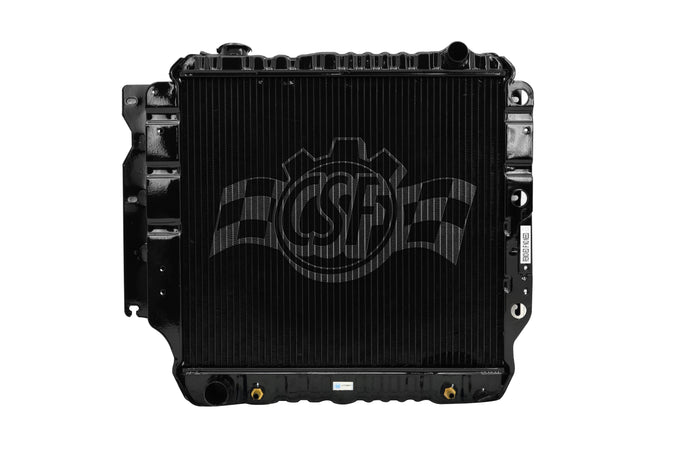

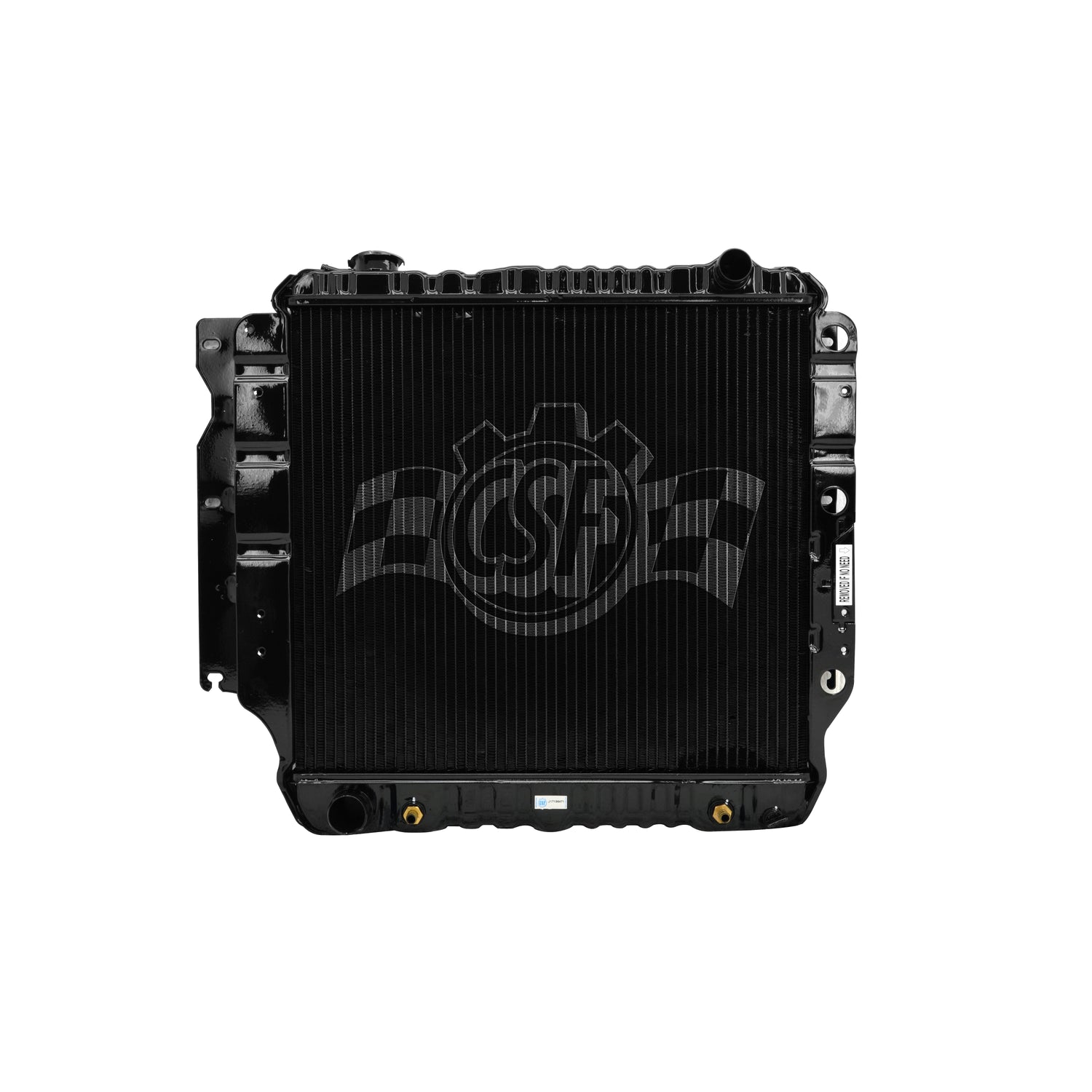

Description:
CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years-over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
Features:
OEM specified Copper-Brass Construction
Easy to recore & repair
No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
OEM specified "Single Piece-Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
Tubes-Special coated OEM specified "Double Lock Seam Joints" for Long Life
Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec
Side Channels-Coated Steel for Strength & Durability
Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
100% leak tested before leaving factory at 150% of operating pressure
Industry Best Packaging-"10 Foot Drop Test" Standard
Drop-in Fit
Built for OEM Cooling-High Performance Transmission Cooler with special Built-in Turbulators
All components are installed, torqued & tested on Radiator during assembly
Box Length (in): 28 1/16
Box Width (in): 25 5/16
Box Height (in): 5 11/16
Box Weight (lbs): 19
Core Length (in): 18 1/8
Core Width (in): 20
Core Thickness (in): 1 1/4
Inlet Length (in): 20 1/16
Inlet Width (in): 2
Outlet Length (in): 20 1/16
Outlet Width (in): 2
Top Hose Fitting (in): 1 1/4 Right
Bottom Hose Fitting (in): 1 1/2 Left
No. Of Rows: 2
Oil Cooler (in): 12 (high-effeciency Concentric Type)
Core Material: Copper
Tank Material: Brass
Cross-flow/ Down-flow: Down Flow
Radiator Cap Supplied: No
Csf Cap Number: 4501
Hazardous Material: No
Tech Note: Rugged ALL METAL Multifit model; Supplied with snap-on & push-on oil cooler fittings; Removable bracket for applications with A/C.
Reference Number: 1015,1682,2101,2102,2760,52004781,52006122,52006123,52006124,52006125,52006126,52007227,52007228,52028112,52028114,52028120,52028123,52029113,52029160,52040229,52040285,52040286,52040287,52040288,52080180,52080181,8952040229,8952040285,8952040286,8952040287,8952040288,52080183 AB,52079598 (HD),CH3010211,CH3010213,CH3010215,CH3010221,CH3010219,CH3010220,CH3010224,CH3010225,CU1015,CU2101,8011015,8011682,8012101
Package Includes:
Radiator
Compatible With:
1987-1995,1997-2002 Jeep Wrangler
