CA Auto Parts

Switched Power Harness
6x Outputs (Extended)

SKU:

MOTO-BAF069H
$ 130.00
Availability: In Stock
X

Select Vehicle

Please select Please select Please select Please select Please select

Total:

$130.00
X

Compatibility

Year Make Model Trim Engine
Description:

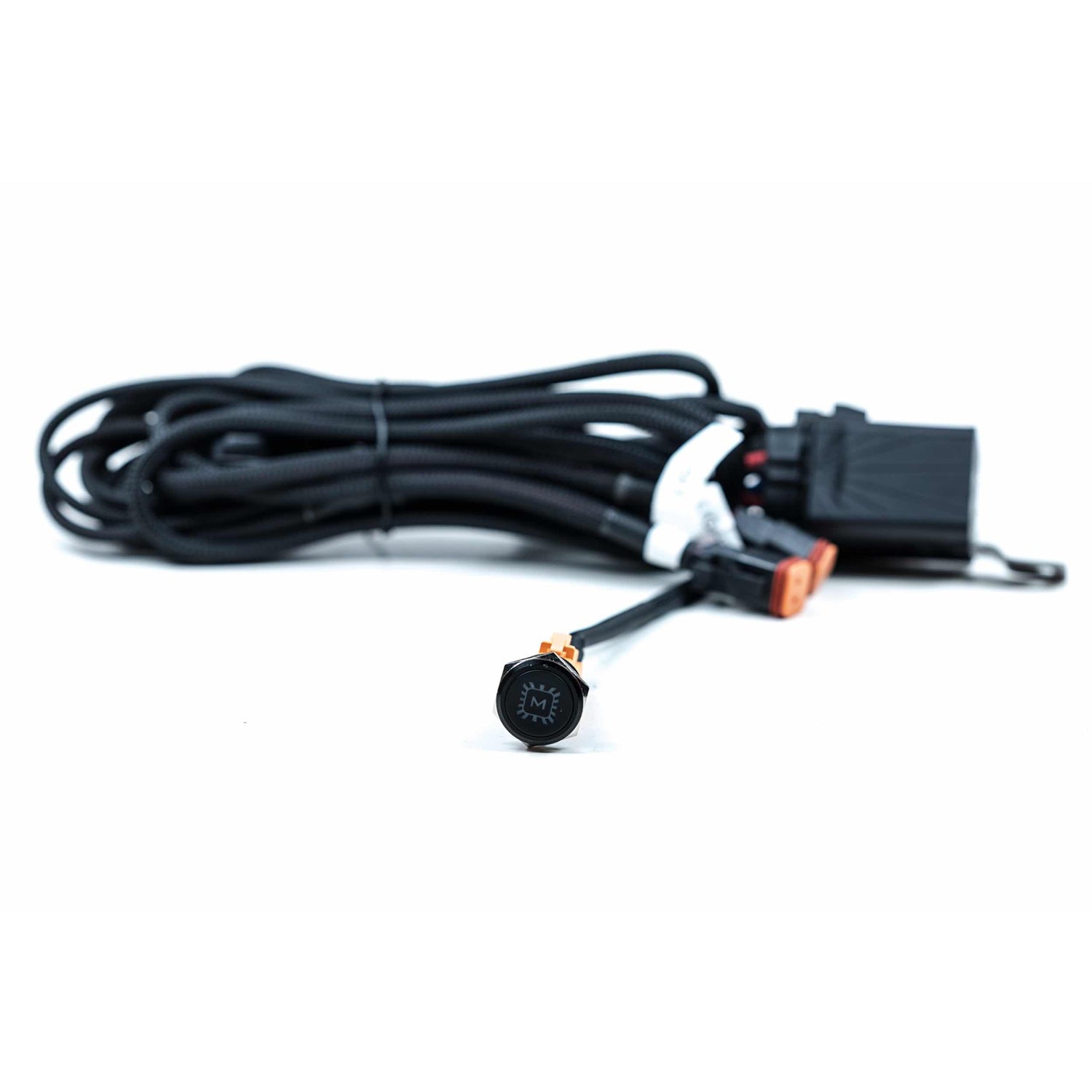

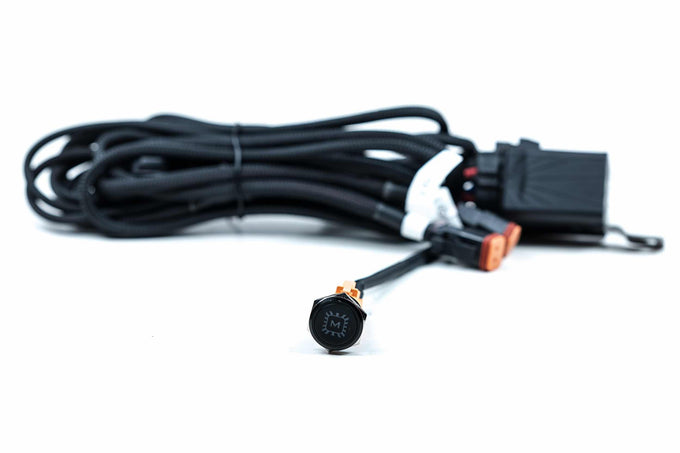

Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. If you want the best, bingo. If you want cheap, you'll want to look for an alternative (and sadly, that wont be hard to find -- because until now, everybody has overlooked the importance of quality cables). OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relays with dual-hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight. Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery for up to six off road lights. Every line of the beefy 10 AWG copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing. Plug n Play: The connections on the harness have been laid out in a logical way to power up to three LED pods on each side of your vehicle. There are six total deutsch outputs. A positive battery terminal, and ground terminal, and a switch. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall. Compatible: While this harness is a perfect match for the Morimoto 4Banger LED pods on the 2021+ Ford Bronco, you can make good use of it with any other off-road lighting setup that takes a DT-style two-pin input (which is basically the industry standard).

Specifics and Features:

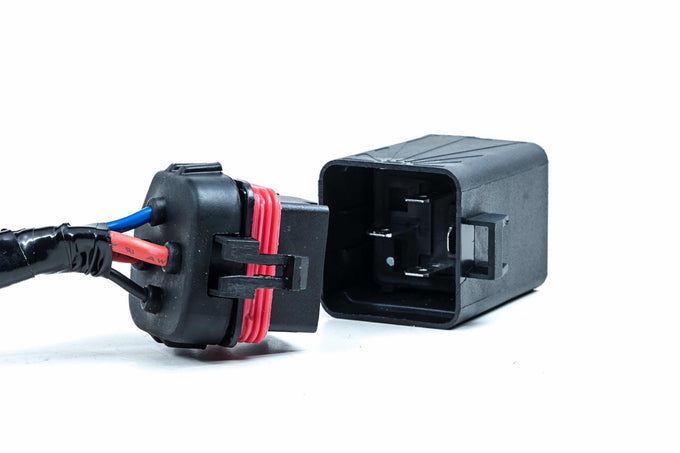

  • Relays: 2x Triple-Sealed 40A M-Spec
  • Input: Bare Wire (Upfitter Switch input)
  • Outputs: 6x Deutsch DT 2-Pin Female
  • Main Input: 12V+/- Battery Ring Terminals (8.5mm ID / 15mm OD)
  • Wiring: 10AWG-18AWG Copper Stranded
  • Insulation: Black Tech Flex Braided Mesh


    • Package Includes:

  • Harness: 1x Morimoto Six Pod Power Harness


    • Compatible With:

  • Morimoto Pods: 1Banger, 2Banger, and 4Banger
  • NOTE: These are replacement assemblies. Your truck must have stock mirror lights already.


    • PRODUCT DISCLAIMER

    The person that is purchasing this product makes the following representations and acknowledges and agrees to the following terms and conditions:

    This off-road race only product ("this Product") is designed and intended for use in organized, amateur and professional racing events, but is limited to closed-course racing and open-course racing that is formally sanctioned by a recognized racing organization involving the motor vehicle in which it is installed (the "Vehicle"). It is not for use on public highways or roads nor is it for recreational off-road use other than solely for competition purposes. The person or entity buying this Product and/or using this Product (the "User") agrees to use the Vehicle solely for competition uses as described herein, and the User acknowledges that the purchase, installation and use of this Product all comply with federal, state and local laws, rules, regulations and ordinances by the User.

    The User accepting this disclaimer acknowledges and hereby indemnifies and saves harmless to the manufacture(s), its officers, employees, agents, distributors and dealers for any damages, penalties, fines, expenses or other costs which may arise from the use of this Product and without limiting the generality of the foregoing specifically acknowledges the following:

    • Use of this Product for purposes other than solely for competition is a violation of federal law and may violate applicable state or local environmental, motor vehicle and other laws. The User warrants that this Product shall only be used in sanctioned closed-circuit events.
    • That use of this Product may violate warranties from the manufacturer of the Vehicle or from others.
    • That use of this Product may make the Vehicle unfit or unsafe for the purposes intended or for any purpose and cause personal injury, property damage or death.
    • That the installation of this Product, improper installation of this Product, use of this Product with other components or failure to use this Product in conjunction with other components, could result in or cause personal injury, property damage or death.

    THIS PRODUCT IS FOR COMPETITION RACETRACK USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION RACETRACK OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
