CA Auto Parts

Sealed Beam
Morimoto Sealed4 (4x6)

SKU:

MOTO-LF267
$ 245.00
Availability: In Stock
X

Select Vehicle

Please select Please select Please select Please select Please select

Total:

$245.00
X

Compatibility

Year Make Model Trim Engine
Description:

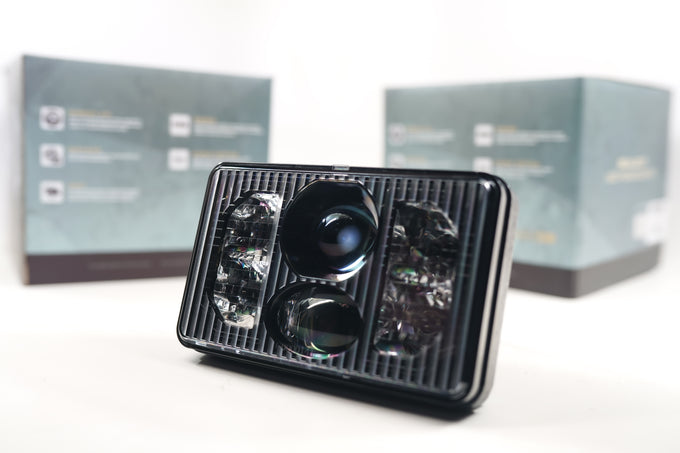

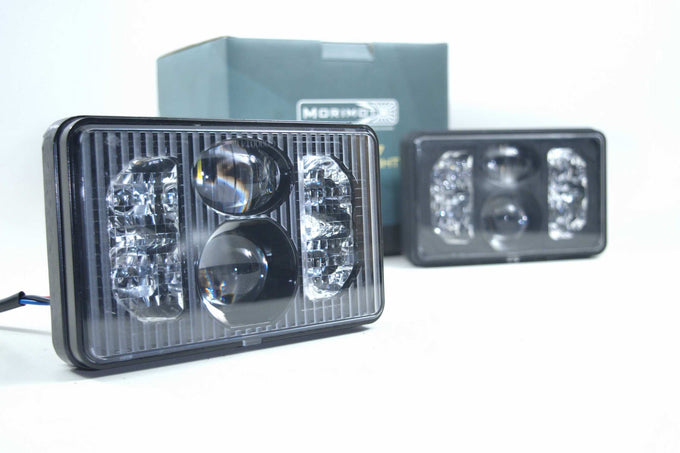

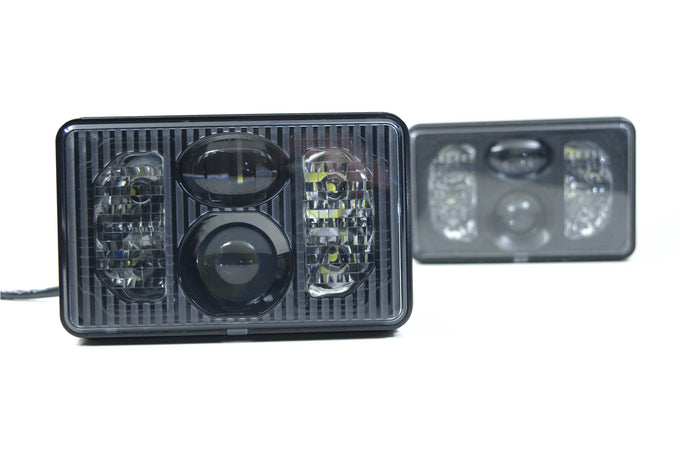

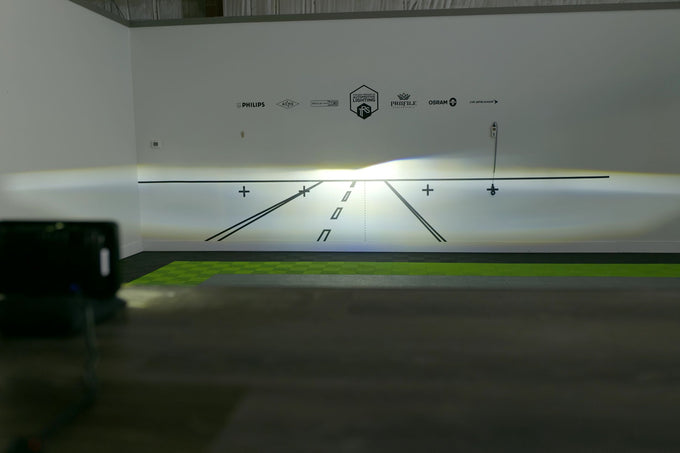

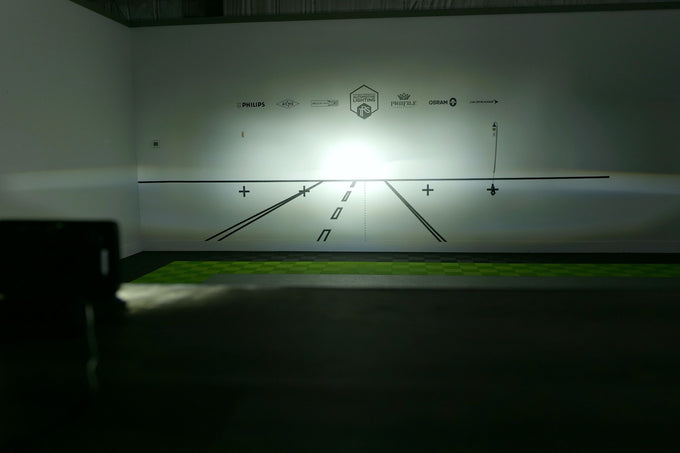

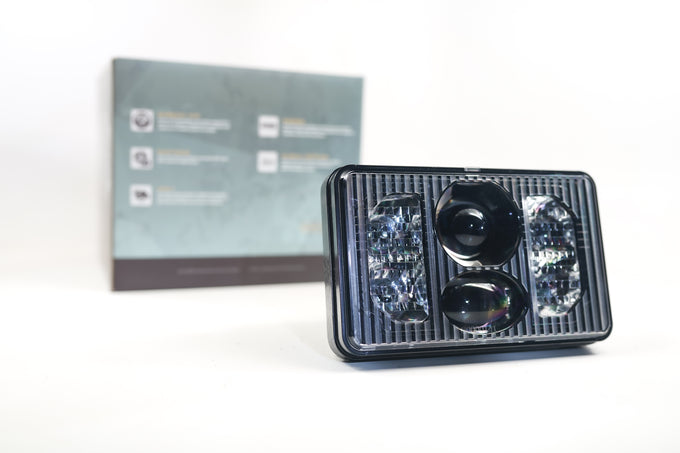

Just when you think: You've done your research and come across every last option in the 4x6" Sealed Beam LED market, these should catch your attention. While it's true there's only so many ways you can package a set of low and high beam LED-based optics into a small rectangular headlight; Morimoto's Sealed4 pulls it off in the most functional and attractive setup possible Proprietary: The Morimoto Sealed4 is all-new, all-original from the ground up. Until now, there were basically three distinct products on the market. You have the high-end J.W. Speaker 8800 at the top of the totem poll. Then there are the cheap J.W. Speaker knock-offs, re-branded by companies A,B, and C--..and last but not least you have the options like the Truck-Lite reflector-based 4x6" lights... again, re-branded by company X,Y, and Z. The Morimoto Sealed4 LED headlights are unlike anything else on the market. Output: In low beam mode, Nichia NCSW170C Series LED's paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes 2400 lumens on the road in a properly LHD-stepped beam pattern. In high beam mode, the Sealed4 illuminates an extra set of optics, upping the overall output to 4300 mosquito-melting lumens there. Quality: No expense was spared when designing the Sealed4. The heart of the headlight is powered with high quality LEDs from Nichia-Japan. These aren't cheap emitters to begin with. Your classic car has already withstood the test of time and the UV-coated polycarbonate lens will take a another couple decades worth of abuse without fading. You can feel the precision in the heavy-duty die-cast housings that double as a heat-sink. A special PWM LED driver resides inside of the headlight to keep the LED's running at their peak intensity, even during prolonged periods of use. 4x6" Standard: Designed to replace all 4x6" rectangular headlights, these are cross compatible with other sizes, found in the compatibility section below. The Sealed4 offers full low and high beam functionality. They come standard with H4 3-pin male inputs and should be plug and play on most classic cars / trucks.

Specifics and Features:

  • Intensity: 2,400lm (Low), 4,300lm (High)
  • Power: 20w (Low), 35w (High)

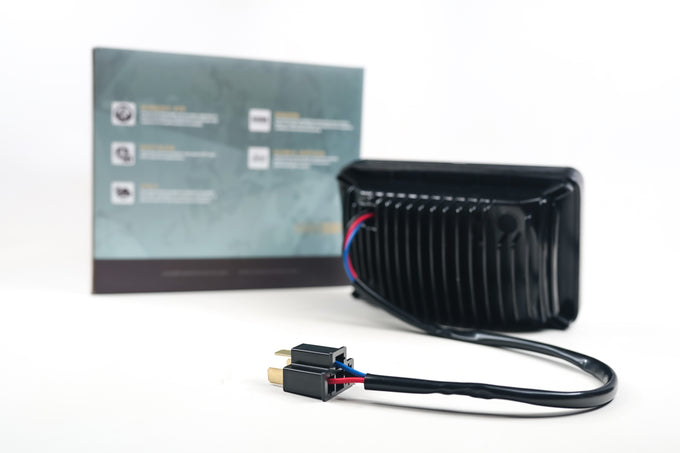

  • Input: H4
  • Traffic Pattern: LHD Only
  • Material: Aluminum (Housing), Polycarbonate (Lens)
  • Light Source: Nichia NCSW170C 5000K (Pure White)


    • Package Includes:

  • Headlight: 1x Sealed4 Bi-LED Headlight


    • Compatible With:

  • Sealed Beam Standards: H4651, H4652, H4656, H4666, HP6545, HP4651, HP4656, HP4666
  • Wiring: Adopts OE Halogen or LED on 17-19 trucks to 20-22 Morimoto XB LED Headlights**


    • PRODUCT DISCLAIMER

    The person that is purchasing this product makes the following representations and acknowledges and agrees to the following terms and conditions:

    This off-road race only product ("this Product") is designed and intended for use in organized, amateur and professional racing events, but is limited to closed-course racing and open-course racing that is formally sanctioned by a recognized racing organization involving the motor vehicle in which it is installed (the "Vehicle"). It is not for use on public highways or roads nor is it for recreational off-road use other than solely for competition purposes. The person or entity buying this Product and/or using this Product (the "User") agrees to use the Vehicle solely for competition uses as described herein, and the User acknowledges that the purchase, installation and use of this Product all comply with federal, state and local laws, rules, regulations and ordinances by the User.

    The User accepting this disclaimer acknowledges and hereby indemnifies and saves harmless to the manufacture(s), its officers, employees, agents, distributors and dealers for any damages, penalties, fines, expenses or other costs which may arise from the use of this Product and without limiting the generality of the foregoing specifically acknowledges the following:

    • Use of this Product for purposes other than solely for competition is a violation of federal law and may violate applicable state or local environmental, motor vehicle and other laws. The User warrants that this Product shall only be used in sanctioned closed-circuit events.
    • That use of this Product may violate warranties from the manufacturer of the Vehicle or from others.
    • That use of this Product may make the Vehicle unfit or unsafe for the purposes intended or for any purpose and cause personal injury, property damage or death.
    • That the installation of this Product, improper installation of this Product, use of this Product with other components or failure to use this Product in conjunction with other components, could result in or cause personal injury, property damage or death.

    THIS PRODUCT IS FOR COMPETITION RACETRACK USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION RACETRACK OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
