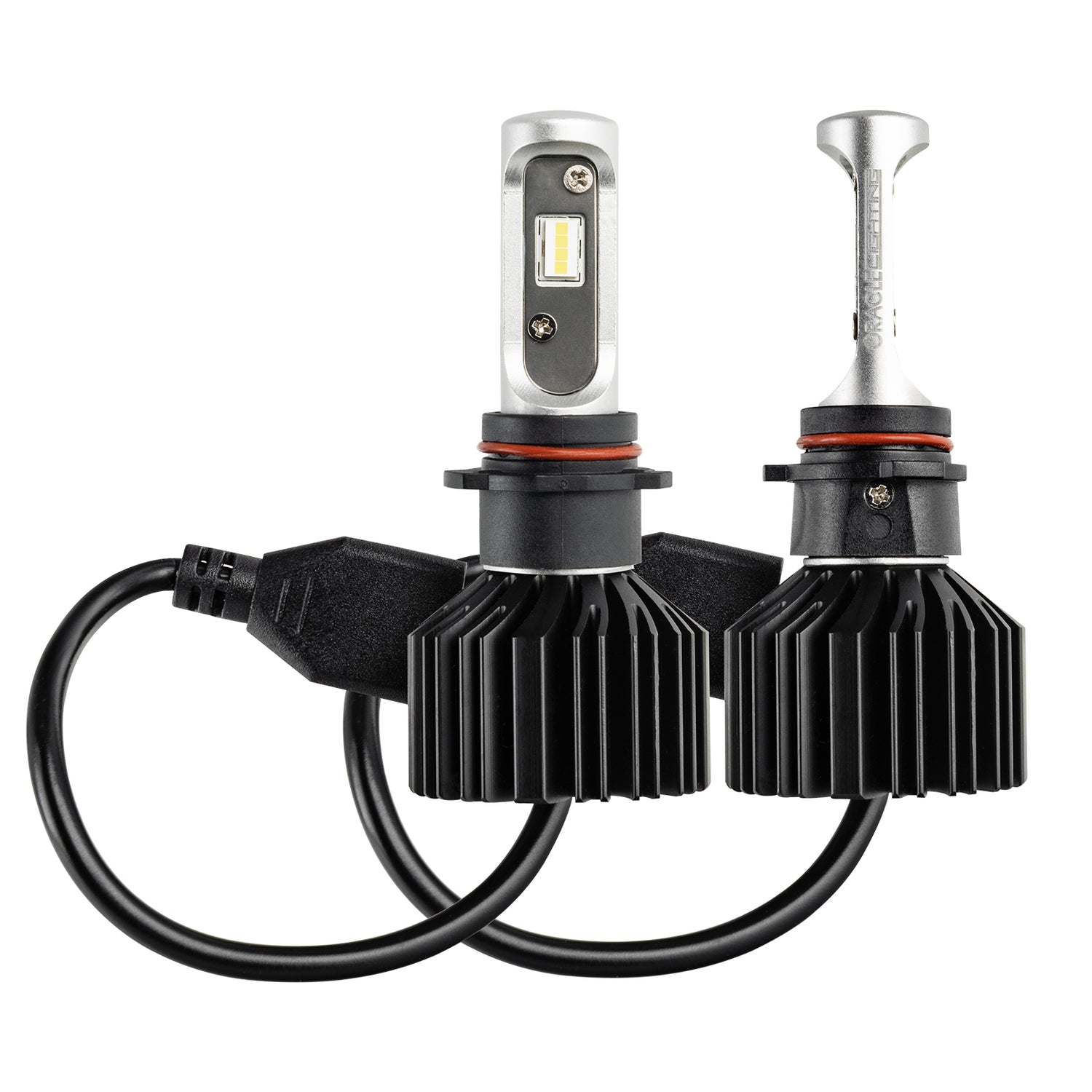

P13W VSeries LED Headlight Bulb Conversion Kit

SKU:

OL-V5249-001
$ 116.96
Availability: In Stock
X

Select Vehicle

Please select Please select Please select Please select Please select

Total:

$116.96
X

Compatibility

Year Make Model Trim Engine
Description:

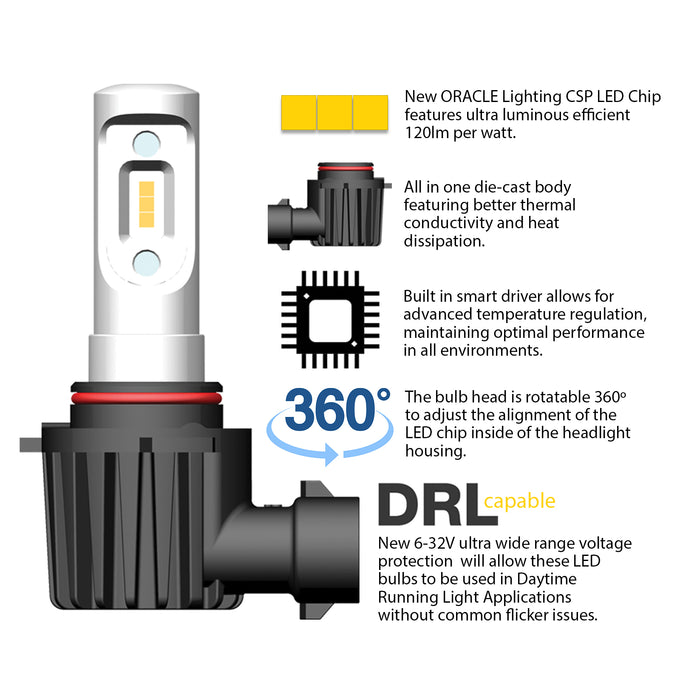

Looking for a bright, versatile, and easy to install LED Headlight Conversion Option The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology provides enhanced electrical performance over standard wire bond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. If the bulb becomes hot and surpasses optimal working temperature, the driver can reduce the current by altering the PWM duty cycle until temperature stabilizes. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened. Although reducing the current reduces luminosity, the current reduction is minimal.

Specifics and Features:
  • Features:
  • ONLY DOT Compliant "淪treet Legal"
  • FIRST 6-Volt Daytime Running Light Compatible LED Bulb Available.
  • LED Bulb features Precision Filament Geometry for no-Glare Illumination.
  • No Fan, Head-Sink, or other obstructing/ cumbersome cooling system.

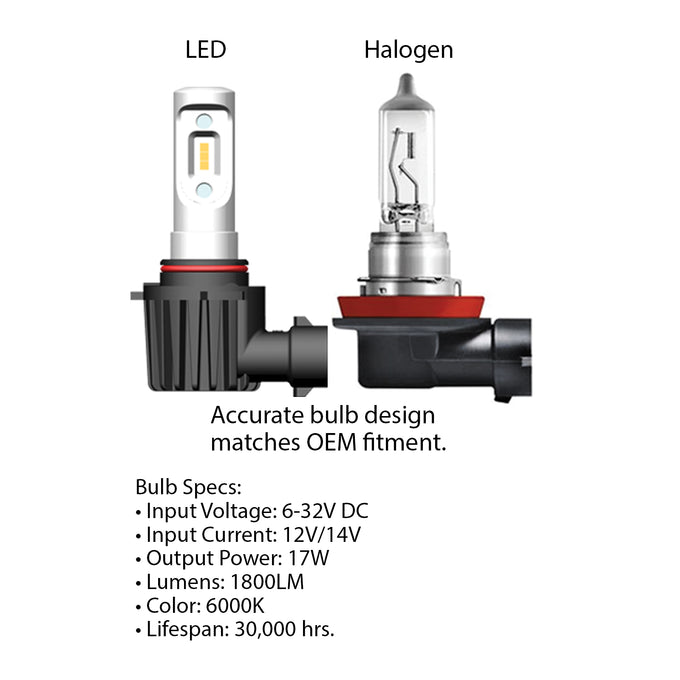

  • Physically matches original bulb for OEM fitment and easy DIY installation.
  • Bulb Specifications:
  • Color Temp: 6000K
  • Input Voltage: 6-32V DC
  • DRL Compatible: YES
  • Power Draw: 17W/ Bulb
  • Lumens: 3,600LM/ Set
  • Efficacy: >100lm/W*
  • *Industry-Leading Efficacy Ratio
  • Part Number : V5249-001

    Package Includes:
  • 1 X Headlight Bulb Set

    Compatible With:
  • Universal

    • PRODUCT DISCLAIMER

    The person that is purchasing this product makes the following representations and acknowledges and agrees to the following terms and conditions:

    This off-road race only product ("this Product") is designed and intended for use in organized, amateur and professional racing events, but is limited to closed-course racing and open-course racing that is formally sanctioned by a recognized racing organization involving the motor vehicle in which it is installed (the "Vehicle"). It is not for use on public highways or roads nor is it for recreational off-road use other than solely for competition purposes. The person or entity buying this Product and/or using this Product (the "User") agrees to use the Vehicle solely for competition uses as described herein, and the User acknowledges that the purchase, installation and use of this Product all comply with federal, state and local laws, rules, regulations and ordinances by the User.

    The User accepting this disclaimer acknowledges and hereby indemnifies and saves harmless to the manufacture(s), its officers, employees, agents, distributors and dealers for any damages, penalties, fines, expenses or other costs which may arise from the use of this Product and without limiting the generality of the foregoing specifically acknowledges the following:

    • Use of this Product for purposes other than solely for competition is a violation of federal law and may violate applicable state or local environmental, motor vehicle and other laws. The User warrants that this Product shall only be used in sanctioned closed-circuit events.
    • That use of this Product may violate warranties from the manufacturer of the Vehicle or from others.
    • That use of this Product may make the Vehicle unfit or unsafe for the purposes intended or for any purpose and cause personal injury, property damage or death.
    • That the installation of this Product, improper installation of this Product, use of this Product with other components or failure to use this Product in conjunction with other components, could result in or cause personal injury, property damage or death.

    THIS PRODUCT IS FOR COMPETITION RACETRACK USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION RACETRACK OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT.
