Description:

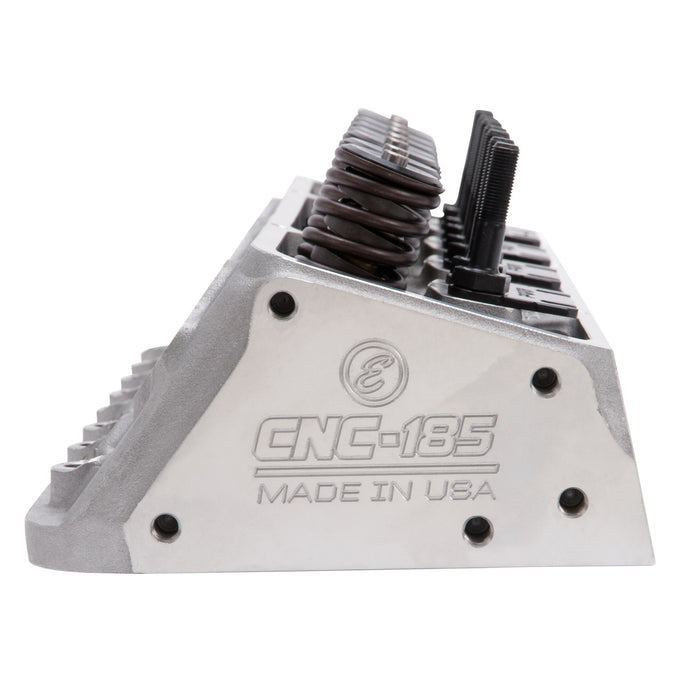

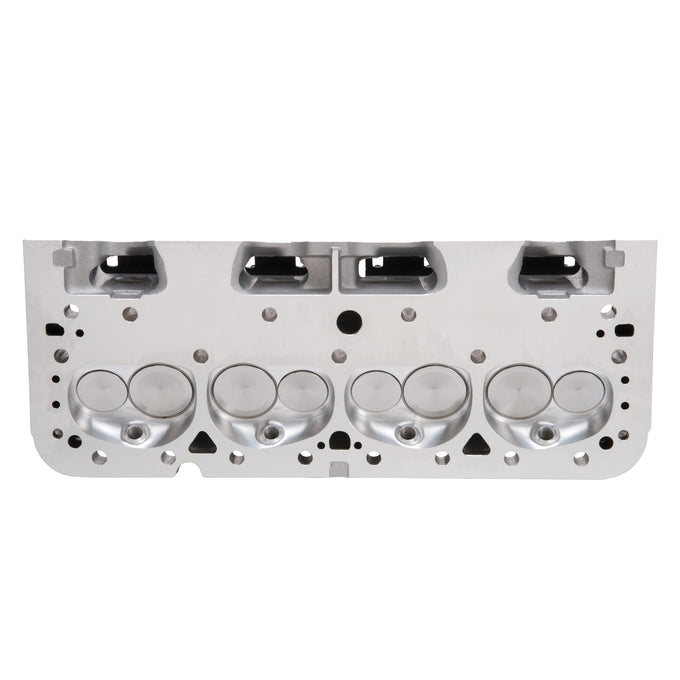

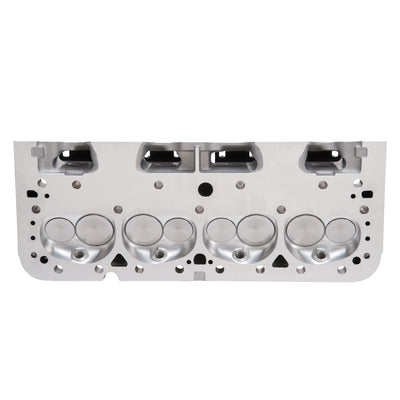

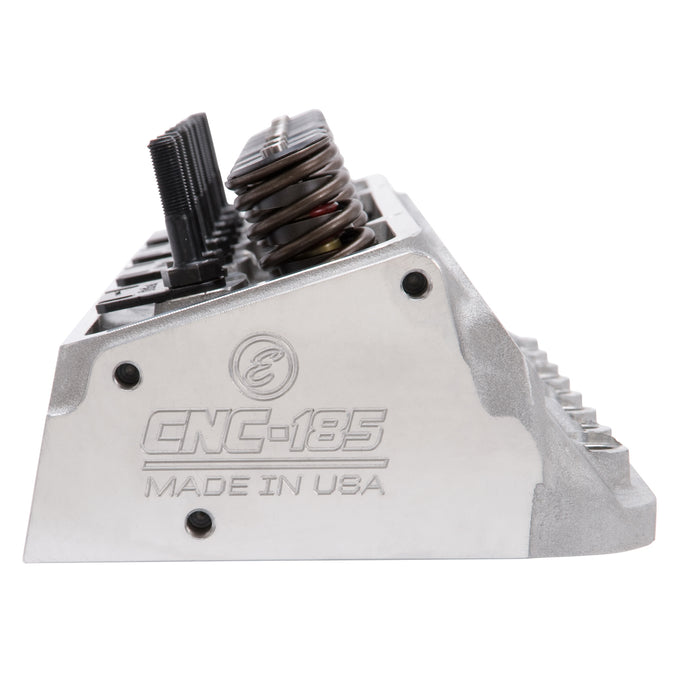

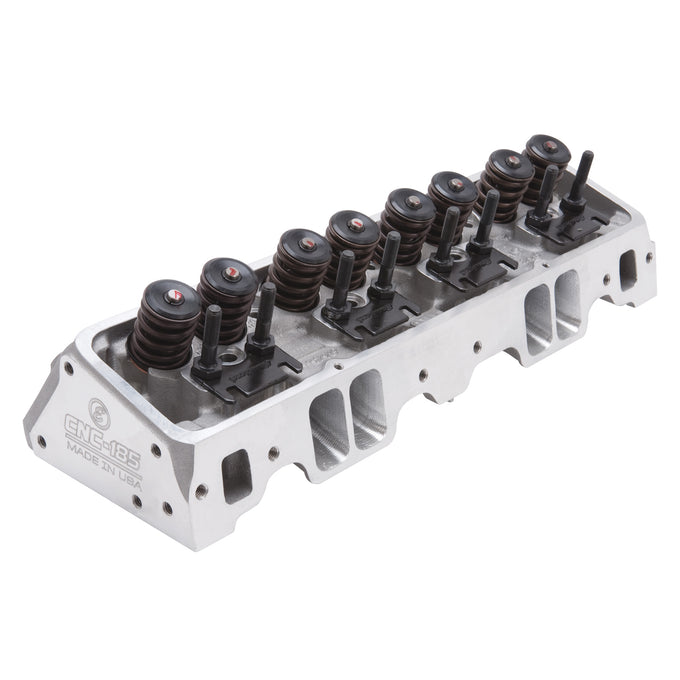

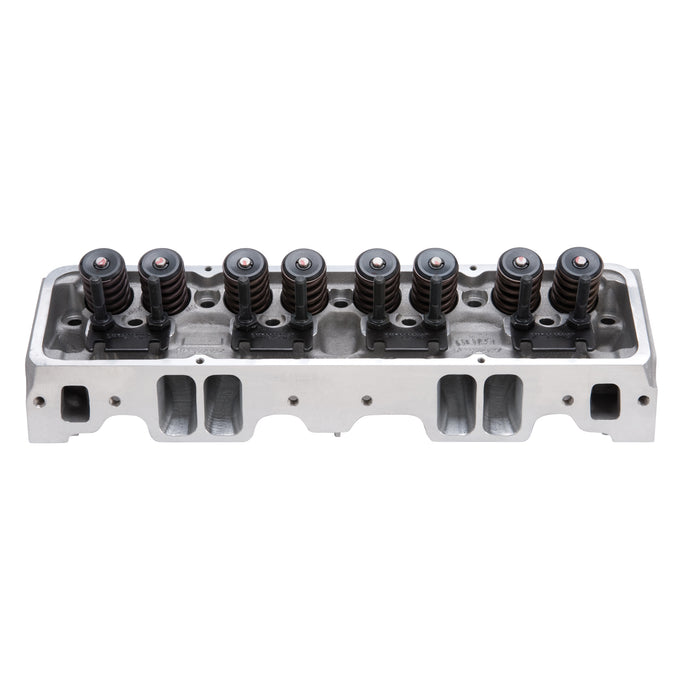

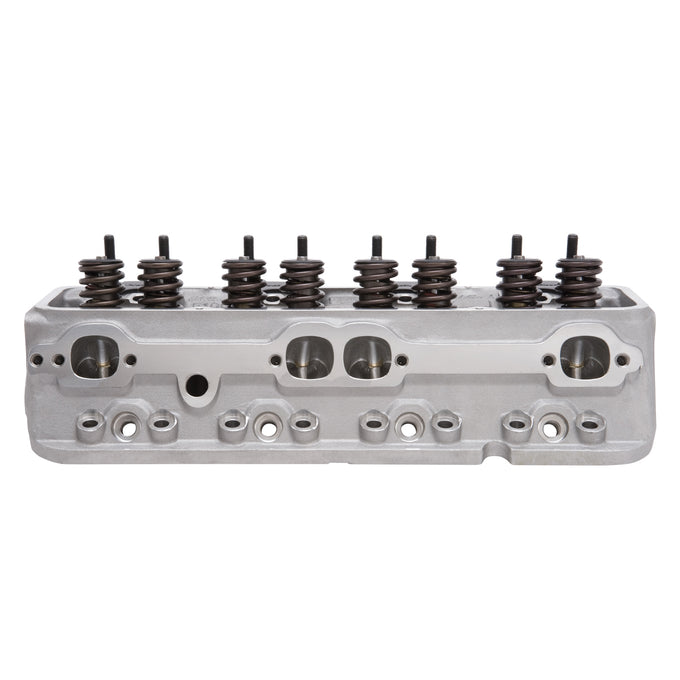

The Edelbrock part 79895 Small Block Chevy E-CNC cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over the Performer RPM Cylinder Head - 61205 & 61209 features 7/16 studs and angled spark plugs - Ideal for high Performance's street and racing applications
Features:
Camshaft Type: Hydraulic Roller
CNC Ported: No
Construction Type: Complete
Deck Thickness: 0.5625 IN
EGR Port: No
Exhaust Port Location: Standard
Exhaust Runner Volume: 75 CCM
Exhaust Valve Diameter: 1.60 IN
Family: E-CNC
Guide Material: Manganese Bronze
Guide Plate Material: Hardened Steel
Horsepower: 400-500 HJ
Intake Valve Diameter: 2.02 IN
Push Rod Diameter: (Suggested) 0.3125 IN
Quantity: Sold Individually
Retainer Included: Yes
Rocker Arm Stud Diameter: 0.375 IN
Rotor Center Bore Inside Diameter: Straight
Seat Angle: Exhaust 45 deg/Intake 45 DD
Seat Material: Ductile Iron
Series: E-CNC
Valve Angle: 23 DD
Valve Lock Material: Steel
Valve Spring Diameter: 1.46 IN
Valve Spring Maximum Lift: 0.575 IN
Valve Stem Diameter: 0.3410 IN
Package Includes:
Edelbrock SBC Cylinder Head
Compatible With:
1977-1981 Buick Century
1978,1982 Buick LeSabre
1977-1987 Buick Regal
1991-1993 Buick Roadmaster Commercial Chassis
1977-1979 Buick Skylark
1958-1975,1981 Chevrolet Bel Air
1975-1986 Chevrolet K5 Blazer C10 C20 C30 G30 K10 K20 G10 G20
1967-1986 Chevrolet C10 Suburban C20 Suburban Camaro K20 Suburban K10 Suburban
1966-1986 Chevrolet Caprice
1955-1982,1984-1986 Chevrolet Corvette
1958-1985 Chevrolet Impala
1977-1986 Chevrolet K30
1969-1979 Chevrolet Nova
1975-1978 GMC C25 C25 Suburban C35 G15 G25 K15 K15 Suburban K25 K25 Suburban C15 C15 Suburban G35
1979-1986 GMC C2500 C2500 Suburban C3500 G1500 G2500 K1500 K1500 Suburban K2500 K2500 Suburban K3500 C1500 C1500 Suburban
1978-1986 GMC Caballero
1977-1978 GMC K35
1980,1982 Oldsmobile Cutlass Cruiser
1978-1981 Oldsmobile Cutlass
1978-1980,1982 Oldsmobile Cutlass Supreme Cutlass Calais
1975,1977,1981-1982 Oldsmobile Delta 88
1972,1975,1983-1986 Pontiac Bonneville
1975,1980-1981 Pontiac Catalina
1972,1977-1986 Pontiac Firebird
1972,1975 Pontiac Grandville
1975,1977-1981 Pontiac LeMans
1959-1970,1972-1974,1977-1986 Pontiac Parisienne
1977-1979 Pontiac Phoenix
1955-1969,1972-1974,1976-1981 Pontiac Laurentian
1958-1972 Chevrolet Biscayne
1969-1974 Chevrolet Blazer
1958-1961,1969-1972 Chevrolet Brookwood
1960-1974 Chevrolet C10 Pickup K20 Pickup K10 Pickup C20 Pickup C30 Pickup
1964-1973 Chevrolet Chevelle
1963-1968 Chevrolet Chevy II
1957-1958 Chevrolet Del Ray
1959-1960,1964-1986 Chevrolet El Camino
1968-1974 Chevrolet K30 Pickup G10 Van
1959-1961,1969-1972 Chevrolet Kingswood
1970-1986 Chevrolet Monte Carlo
1955-1957 Chevrolet One-Fifty Series Two-Ten Series
1967-1974 GMC G25/G2500 Van K15/K1500 Pickup K15/K1500 Suburban K25/K2500 Pickup K25/K2500 Suburban C15/C1500 Pickup C15/C1500 Suburban C25/C2500 Pickup C25/C2500 Suburban G15/G1500 Van C35/C3500 Pickup
1970-1974 GMC G35/G3500 Van
1970-1986 GMC Jimmy
1968-1974 GMC K35/K3500 Pickup
1971-1973,1977 Pontiac Ventura
1960-1966 Chevrolet Suburban
1955-1958 Pontiac Pathfinder
1958-1961 Chevrolet Nomad
1955-1958 Chevrolet Sedan Delivery
1955-1958,1960 Chevrolet Truck
1958 Chevrolet Yeoman
1955-1960 GMC Truck
1958-1970 Pontiac Strato-Chief
1959 Chevrolet 3B 3C 3D 3E 3F 3G
1959-1961 Chevrolet Parkwood
1960-1966 GMC 3000 3500
1975,1978-1983 Chevrolet Malibu
1979-1988 GMC G3500
1975,1977 Oldsmobile Custom Cruiser
1978-1980 Oldsmobile Cutlass Salon
1975,1977-1983 Pontiac Grand LeMans
1975-1976,1978-1986 Pontiac Grand Prix
1969-1972 Chevrolet Townsman
1960-1963 GMC 1000 Series 1500 Series 2500 Series
1972 Pontiac Grand Safari
1977-1979 Oldsmobile Omega Starfire
1967-1974 Chevrolet G20 Van
1974 Chevrolet G30 Van
1975-1982 Checker Marathon
1975-1979 Chevrolet Monza
1971-1977 GMC Sprint
1975,1978-1980 Pontiac Grand Am
1978-1979 Pontiac Sunbird
1965-1967,1969-1971,1973-1974,1976-1980 Avanti II
1960-1965 GMC Suburban
1964-1971 Pontiac Acadian
1955,1957-1959 GMC 100 150 250 300
1955-1959 GMC 350-8 370
1964-1969 Pontiac Beaumont
1967 Chevrolet K20 Panel
1956-1959 GMC PM151
1957-1959 GMC PM152
1957,1959 GMC PM153
1956,1958-1959 GMC PM251
1958 GMC PM252 PM253
1955-1956,1958-1959 GMC F350 F370 FM340 FM350 M300 PM150 PM250 S300 S370
1960-1962 Chevrolet C40
1969-1970 Chevrolet Estate
1986-1989 Excalibur Phaeton
1955-1956 GMC M340
1955 GMC 100-22 150-22 250-22 280-22
