Description:

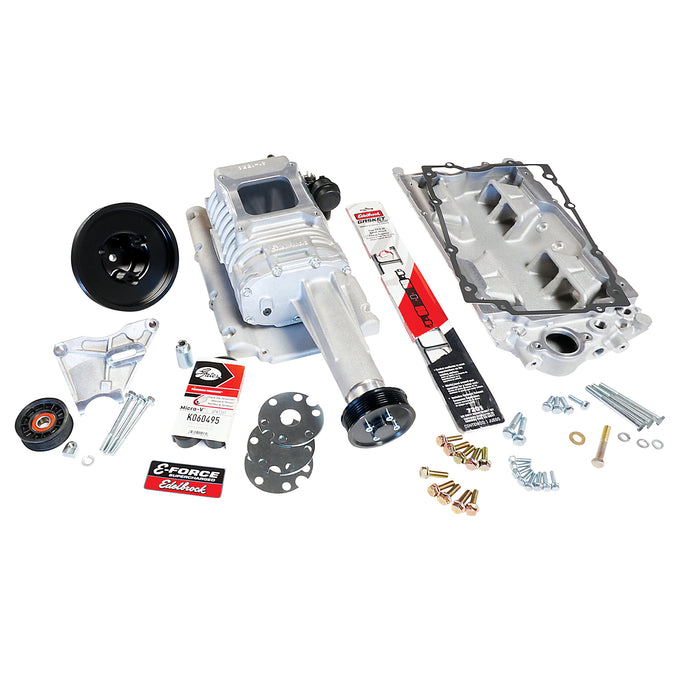

The Edelbrock 122 Supercharger Kit part 1551 for 1955-86 302-400 CID Small-Block Chevrolets is a positive displacement supercharger that is capable of producing 500+ horsepower on a small-block Chevy engine. This system utilizes the Eaton H122 rotor assembly for maximum efficiency in a compact package. The compact design may potentially fit under the hood of most muscle car and street rod applications. Testing resulted in a peak of 507 horsepower and 487 ft-lbs of torque @ 5 PSI on a 350 CID with 9.5:1 compression. The Edelbrock 122 is designed for use with factory style belt and pulley configurations. Will not work with aftermarket serpentine pulley systems and will require the use of a long-style water pump. Each kit includes the supercharger assembly with Eaton internals, intake manifold, drive pulleys, belt, gaskets and all necessary items for ease of installation. Does not include carburetor, so you can use your carburetor of choice. This Edelbrock supercharger is intended for 302-400 CID Small-Block Chevrolets equipped with long water pumps and stock style bracketry. It's designed to utilize the factory accessory drive belts, in conjunction with the secondary 6-rib supercharger pulley drive system. Manifold height: A-8.50in., B-9.75in. Carb pad height: 9.125in. Satin Finish.
Features:
Compatibility: Conventional Cylinder Head
Finish: Satin
Gasket Or Seal Included: Yes
Housing Material: Cast Aluminum
Internal Step Up: Yes
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Oil Capacity: 150 ML
Outside Pulley Diameter: 3.75 IN
Pulley Belt Width: 6-Rib
Quantity: Kit
Rotor Type: Eaton H122
System Type: Edelbrock 122
Universal Or Specific Fit: Specific
Vehicle Model: Chevy Street Rod
Package Includes:
The Edelbrock Kit 1551
Compatible With:
1983-1986 Excalibur Phaeton
1977-1981 Buick Century
1978,1982 Buick LeSabre
1977-1986 Buick Regal
1977-1979 Buick Skylark
1958-1975,1981 Chevrolet Bel Air
1975-1986 Chevrolet K5 Blazer C10 C20 C30 G30 K10 K20 G10 G20
1967-1986 Chevrolet C10 Suburban C20 Suburban Camaro K20 Suburban K10 Suburban
1966-1986 Chevrolet Caprice
1957-1982,1984-1986 Chevrolet Corvette
1958-1985 Chevrolet Impala
1977-1986 Chevrolet K30
1969-1979 Chevrolet Nova
1975-1978 GMC C25 C25 Suburban C35 G15 G25 K15 K15 Suburban K25 K25 Suburban C15 C15 Suburban G35
1979-1986 GMC C2500 C2500 Suburban C3500 G1500 G2500 K1500 K1500 Suburban K2500 K2500 Suburban K3500 C1500 C1500 Suburban G3500
1978-1986 GMC Caballero
1977-1978 GMC K35
1980,1982 Oldsmobile Cutlass Cruiser
1978-1981 Oldsmobile Cutlass
1978-1980,1982 Oldsmobile Cutlass Supreme Cutlass Calais
1975,1977,1981-1982 Oldsmobile Delta 88
1972,1975,1983-1986 Pontiac Bonneville
1975,1980-1981 Pontiac Catalina
1972,1977-1986 Pontiac Firebird
1972,1975 Pontiac Grandville
1975,1977-1981 Pontiac LeMans
1959-1970,1972-1974,1977-1986 Pontiac Parisienne
1977-1979 Pontiac Phoenix
1957-1969,1972-1974,1976-1981 Pontiac Laurentian
1958-1972 Chevrolet Biscayne
1969-1974 Chevrolet Blazer
1958-1961,1969-1972 Chevrolet Brookwood
1960-1974 Chevrolet C10 Pickup K20 Pickup K10 Pickup C20 Pickup C30 Pickup
1964-1973 Chevrolet Chevelle
1963-1968 Chevrolet Chevy II
1957-1958 Chevrolet Del Ray Sedan Delivery
1959-1960,1964-1986 Chevrolet El Camino
1968-1974 Chevrolet K30 Pickup G10 Van
1959-1961,1969-1972 Chevrolet Kingswood
1970-1986 Chevrolet Monte Carlo
1957 Chevrolet One-Fifty Series Two-Ten Series
1967-1974 GMC G25/G2500 Van K15/K1500 Pickup K15/K1500 Suburban K25/K2500 Pickup K25/K2500 Suburban C15/C1500 Pickup C15/C1500 Suburban C25/C2500 Pickup C25/C2500 Suburban G15/G1500 Van C35/C3500 Pickup
1970-1974 GMC G35/G3500 Van
1970-1986 GMC Jimmy
1968-1974 GMC K35/K3500 Pickup
1971-1973,1977 Pontiac Ventura
1960-1966 Chevrolet Suburban
1957-1958 Pontiac Pathfinder
1958-1961 Chevrolet Nomad
1957-1958,1960 Chevrolet Truck
1958 Chevrolet Yeoman
1957-1960 GMC Truck
1958-1970 Pontiac Strato-Chief
1959 Chevrolet 3B 3C 3D 3E 3F 3G
1959-1961 Chevrolet Parkwood
1960-1966 GMC 3000 3500
1975,1978-1983 Chevrolet Malibu
1975,1977 Oldsmobile Custom Cruiser
1978-1980 Oldsmobile Cutlass Salon
1975,1977-1983 Pontiac Grand LeMans
1975-1976,1978-1986 Pontiac Grand Prix
1969-1972 Chevrolet Townsman
1960-1963 GMC 1000 Series 1500 Series 2500 Series
1972 Pontiac Grand Safari
1977-1979 Oldsmobile Omega Starfire
1967-1974 Chevrolet G20 Van
1974 Chevrolet G30 Van
1975-1982 Checker Marathon
1975-1979 Chevrolet Monza
1971-1977 GMC Sprint
1975,1978-1980 Pontiac Grand Am
1978-1979 Pontiac Sunbird
1965-1971,1973-1974,1976-1983 Avanti II
1960-1965 GMC Suburban
1964-1971 Pontiac Acadian
1957-1959 GMC 100 150 250 300 350-8 370 PM151 PM152
1964-1969 Pontiac Beaumont
1967 Chevrolet K20 Panel
1957,1959 GMC PM153
1958-1959 GMC PM251 F350 F370 FM340 FM350 M300 PM150 PM250 S300 S370
1958 GMC PM252 PM253
1960-1962 Chevrolet C40
1969-1970 Chevrolet Estate
