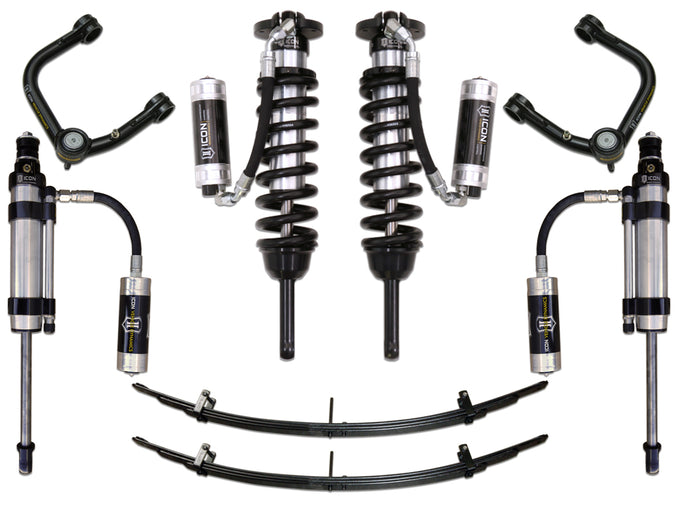

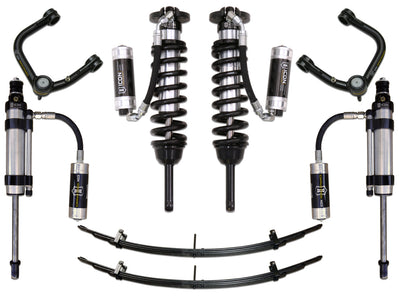

0-2.75in Stage 7 Suspension System <br> 2005-2023 Toyota Tacoma
ICON VEHICLE DYNAMICS
®

0-2.75in Stage 7 Suspension System
2005-2023 Toyota Tacoma

SKU: ICON-K53007T
$5,185.80

Availability: Out Of Stock

Compatibility
Specification
Product Description Reviews
Description:

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers¡¯ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5¡± Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle ¡°feel¡± through the range of travel. The ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 0-3.5¡± of lift on 2005-2015 or 0-2.75¡± on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. 2.5 Series Omega Bypass rear shocks combine vehicle-specific valving, multiple shock damping zones, and 28 settings of compression and rebound adjustment to give end-users ultimate control of the performance and ride quality of the rear of the Tacoma. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features:

  • 2.5 Aluminum Series Omega Bypass rear shocks with compression and rebound adjustability provide the ultimate in ride control
  • 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
  • 6061 aircraft grade aluminum CNC machined components
  • Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
  • Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Extended Travel coilovers offer maximum wheel travel
  • FK Rod End bearings for extended longevity and minimal deflection
  • Front coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
  • Increased wheel travel and ride quality over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
  • Vehicle specific tuned front and rear shocks for superior shock damping and control


  • Package Includes:

  • Suspension Lift Kit


  • Compatible With:

  • 2005-2023 Toyota Tacoma




  • WARNING: This product contains chemicals known to the State. For more information go to https://www.p65warnings.ca.gov/
