Description:

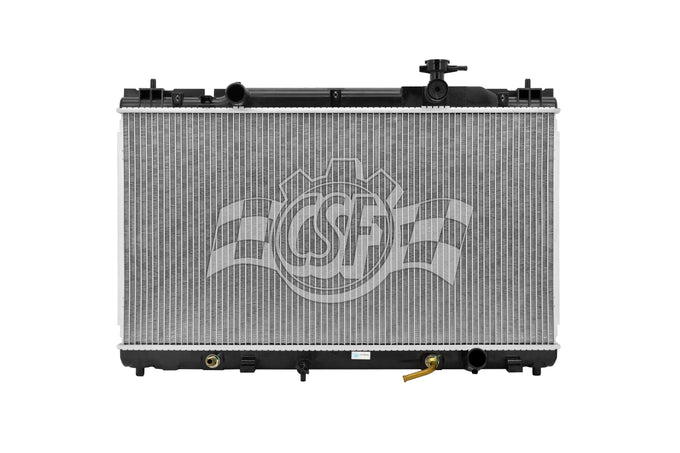

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years-over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
Features:
OEM specified Plastic Tank-Aluminum Core Construction
Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
Tubes-Welded Type or Latest Generation "B-Tube" Design
Fins (Heart of Radiator)-High Performance "Multi-Louvered Design"-OEM Spec
100% leak tested before leaving factory at 150% of operating pressure
Industry Best Packaging-"10 Foot Drop Test" Standard
Drop-in Fit
High Performance Transmission Cooler with special Built-in Turburlator, when applicable
All components are installed, torqued, & tested on Radiator during assembly
Box Length (in): 32
Box Width (in): 22 3/4
Box Height (in): 5 14/16
Box Weight (lbs): 11
Core Length (in): 15 13/16
Core Width (in): 29 1/16
Core Thickness (in): 7/8
Inlet Length (in): 29 1/2
Inlet Width (in): 1 5/8
Outlet Length (in): 29 1/2
Outlet Width (in): 1 5/8
Top Hose Fitting (in): 1 5/16 Left
Bottom Hose Fitting (in): 1 5/16 Right
No. Of Rows: 1
Oil Cooler (in): 14 3/4 (high-effeciency Concentric Type)
Core Material: Aluminum
Tank Material: Plastic
Cross-flow/ Down-flow: Down Flow
Radiator Cap Supplied: No
Csf Cap Number: 4513
Hazardous Material: No
Tech Note: O.E.M. style Plastic tanks & Aluminum core.
Reference Number: 2436,2437,16400-0H020,16400-0H030,16400-0H130,16400-0H131,16400-0H200,16400-28270,16400-28271,16400-28280,16410-AZ014,TO3010285,TO3010257,TO3010276,TO3010284,TO3010302,CU2436,CU2437,8012436,8012437,221-0505,221-0506
Package Includes:
Radiator
Compatible With:
2004-2008 Toyota Solara
2002-2006 Toyota Camry
